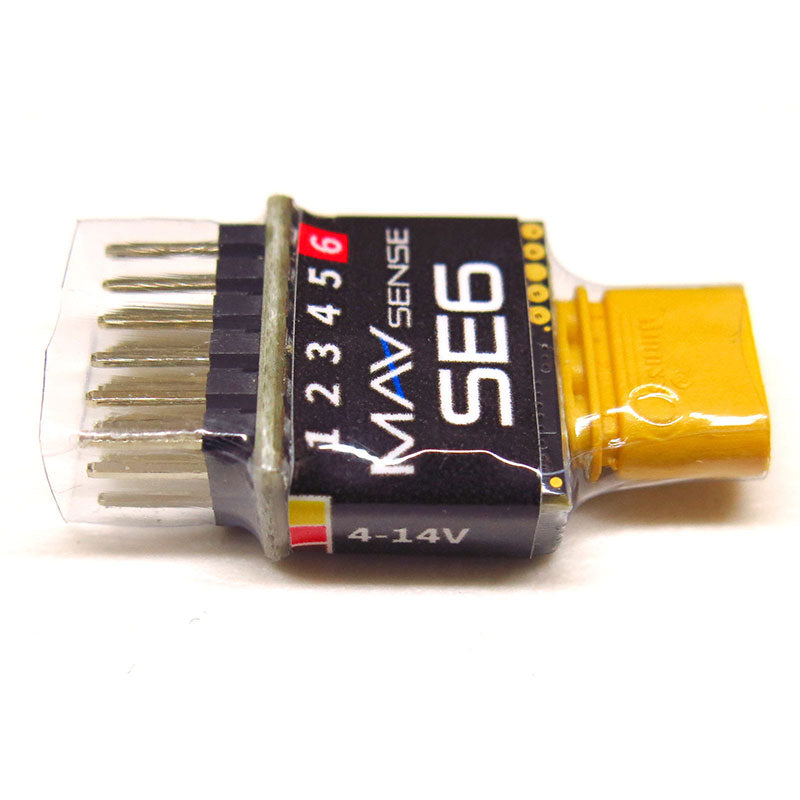

The Servo Expander SE6 is a device that converts serial bus signal to standard PWM servo outputs. It offers up to four configurable servo outputs with optional period and fail-safe setting. The SE6 is a perfect choice for models with complex wing or tail mechanics where multiple servos may be connected to a primary receiver using just a single cable.
Supported protocols:
- Futaba: S.Bus/S.Bus2
- Graupner: SUMD, Hott telemetry for setting
- JETI: EX Bus
- Multiplex: SRXL 12ch, SRXL 16ch
- PowerBox: P2Bus
Features

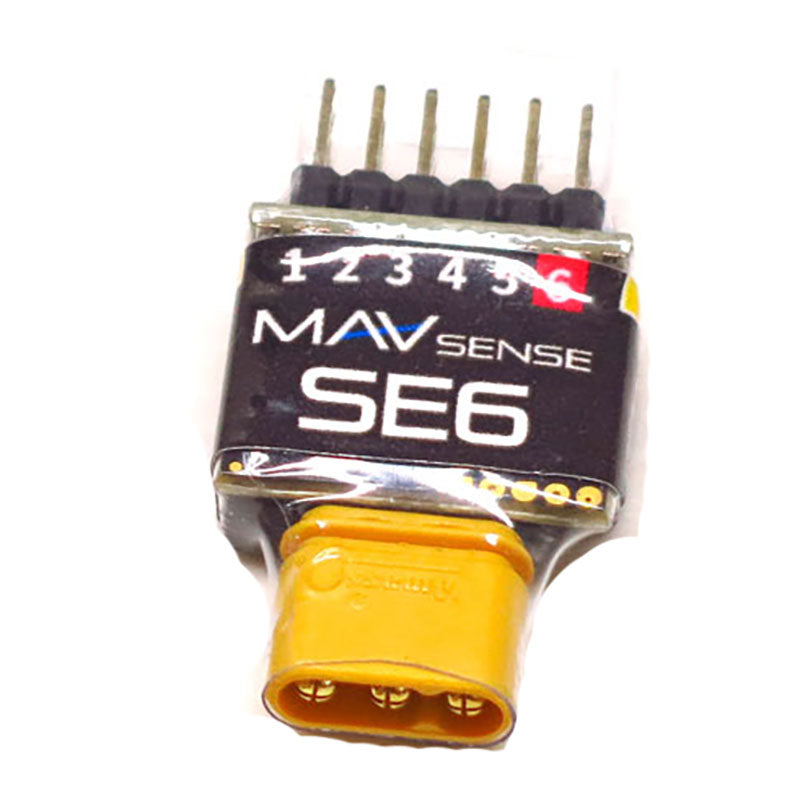

- Small dimensions and high current throughput via the integrated MR30 power connector.
- 6-channel servo/EX Bus sensor expander.
- Automatic detection of serial data/telemetry after startup.
- Configuration through the transmitter, external terminal (JETIBOX/SMART-BOX) or MAV Manager PC software.
- Firmware updates via USB interface.
|
Weight [g] |
4.5 |
|
Dimensions [mm] |
34 x 19 x 8 |
|
Continuous current [A] |
15 |
|
Max. current (2s) [A] |
60 |
|
Telemetry |
JETI Duplex, Multiplex, Graupner Hott, Futaba S.Bus, PowerBox P2Bus |
|
Operational temperature [°C] |
-20 – 85 |
|
Supply Voltage [V] |
4 – 14 |
|
Number of channels |
up to 6 |
|
Receiver inputs |
1 |
|
Battery inputs |
1 |
|
Voltage regulation |
No |
|
Flight stabilization |
No |
