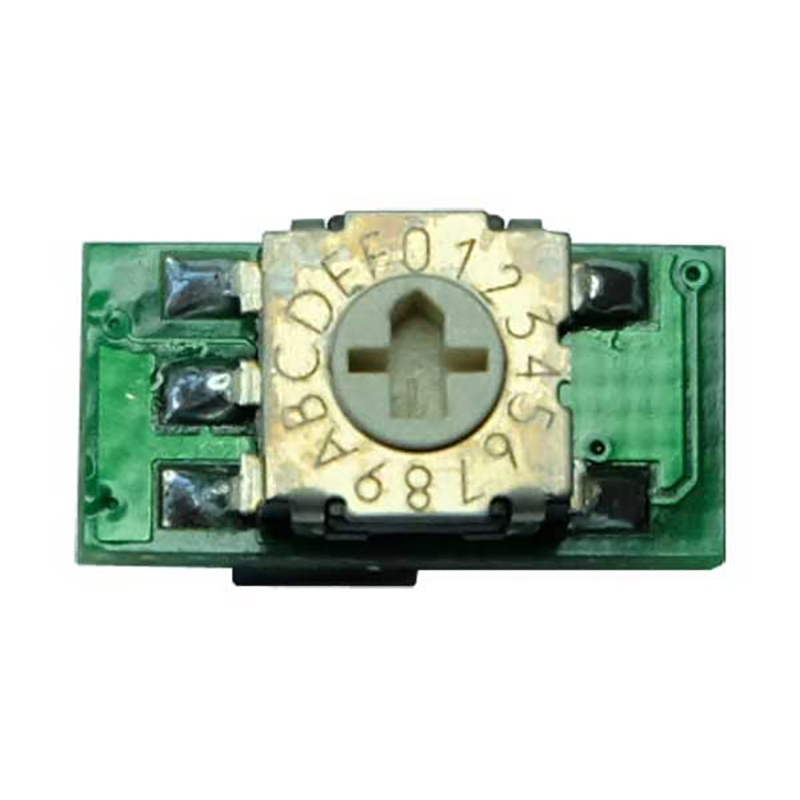

RC F1H was designed to replace mechanical timers in free flight models. It was designed for F1H category. This electronic timer provides precise timing to activate dethermalization. For advance users each preset time can be reprogrammed on field and also servo min/max position can be programmed.
|
Board Dimensions |
15 mm x 8 mm x 7 mm |
|
Weight |
1 gram |
|
Input Current (without servo motor) |
~5 milliamps, 55 milliamps when beeping |
|
Temperature Range1 |
-10°C ~ +60°C |
|
Input Voltage Range |
2.7 – 5.5 volts DC |
