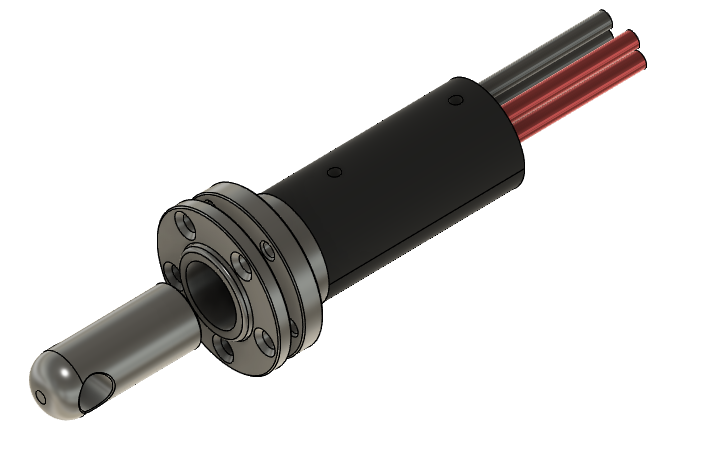

The MPSW15 is a high-performance digital safety switch designed in the style of a classic "REMOVE BEFORE FLIGHT" mechanism. It offers reliable and clearly visible control for critical systems, combining mechanical simplicity with modern digital integration.
It operates using magnetic activation – inserting the supplied magnetic activation pin into the opening disconnects the power (opens the circuit). Removing the pin switches the device on and activates the connected circuit. The powered-on state is indicated by illuminated LED indicators.
This system offers a safe and reliable solution for switching receivers, ignition systems, and other onboard electronics without the need for mechanical contacts.
The switch provides reliable and secure control via a magnet, supports various types of loads including inductive, and—being contactless—has no wear due to switching cycles or current flow.
| Weight [g] | 16 |
| Dimensions [mm] | Ø22,5 / Ø15 x 42 mm |
| Operational temperature [°C] | -20 – 85°C |
| Supply Voltage [V] | 5 – 17 |
|
Weight [g] |
4 |
|
Dimensions [mm] |
34 x 14 x 9 |
|
Continuous current [A] |
15 |
|
Max. current (2s) [A] |
60 |
|
Telemetry |
JETI Duplex, Multiplex, Graupner Hott, Futaba S.Bus, PowerBox P2Bus |
|
Operational temperature [°C] |
-20 – 85 |
|
Supply Voltage [V] |
4 – 14 |
|
Number of channels |
4 |
|
Receiver inputs |
1 |
|
Battery inputs |
1 |
|
Voltage regulation |
No |
|
Flight stabilization |
No |
