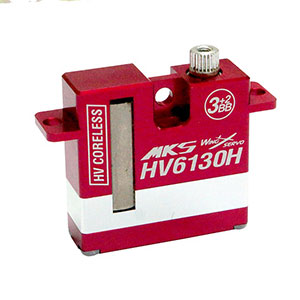

MKS HV6130H Wing Servo

HV6130H

No. S0022010

Torque: 6.0 kg-cm (6.0V) / 7.6 kg-cm (7.4V) / 8.1 kg-cm (8.2V)

Speed: 0.14 s (6.0V) / 0.11 s (7.4V) / 0.10 s (8.2V)

Weight: 23 g

Dimension：30 x 10 x 29.8 mm
Working Voltage：3.5~8.4 V DC Volt (2S Lipo un-regulated)
Working frequency：1520μs / 333Hz
Dead Band：0.001 ms (Default)
Bearing : 3x ball bearing + 2xJewel bearing
Motor：Coreless Motor
Gear：Metal Alloy Gear
Current Draw: 1.2A@ 6.0V / 1.4A@ 7.4V / 1.6A@ 8.2V

 Bulit-In Safe System to protect your system
