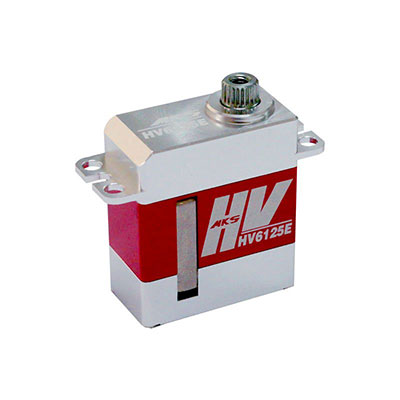

MKS HV6125e Servo
Primarily designed as a glider tail servo and perfectly complements the HBL6625 HV wing servo - but HV6125e can also great for wings too, when the application is appropriate.
- High Voltage: 6.0 - 8.2V
- Ultra-High Resolution
- All Aluminium Alloy CNC Case
- Coreless Motor
- Fast
- Negligible Backlash
Torque: 2.3 kg-cm (6.0V) / 3.0 kg-cm (7.4V) / 3.5 kg-cm (8.2V)
Speed: 0.07 s (6.0V) / 0.06 s (7.4V) / 0.05 s (8.2V)
Weight: 19.86 g
Dimension：23 x 12 x 27.25 mm
Working Voltage：6.0~8.4 V DC Volt (2S Lipo un-regulated)
Working Frequency：1520μs / 333hz
Dead Band：0.0008 ms (Default)
Bearing：Dual Ball Bearings
Motor：Coreless Motor
Gears：Chrome-Titanium alloy
