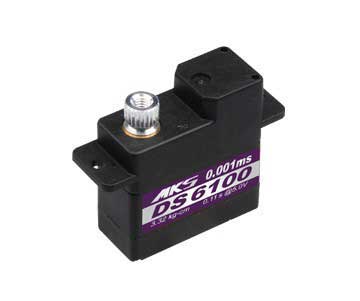

The MKS DS6100 is an incredibly small servo, and yet has massive power for it's size, astonishing precision and metal gears, ideal for thin-wing aileron installations and V-tails with slender F3X fuselages.
Specification
Body dimensions 22.5 mm wide x 10.0 mm thick x 23.5 mm high
Stall torque (4.8V) 3.19 kg.cm ( 5V) 3.32 kg.cm
Weight 9.5 g
Operating speed (4.8V) 0.12 sec/60° (5V) 0.11 sec/60°
Operating voltage 4.8V to 5.0V (best to use MKS Sbec 1.5)
Bearings 2 Jewel Bearing + 1 Bronze Bushing
Gear material Bronze + Aluminium-magnesium alloy gears
Case material Plastic
Motor type Coreless motor
Working frequency 333 Hz
Dead band 0.001 Ms
Driver type FET
Digital Yes
Programmable No
