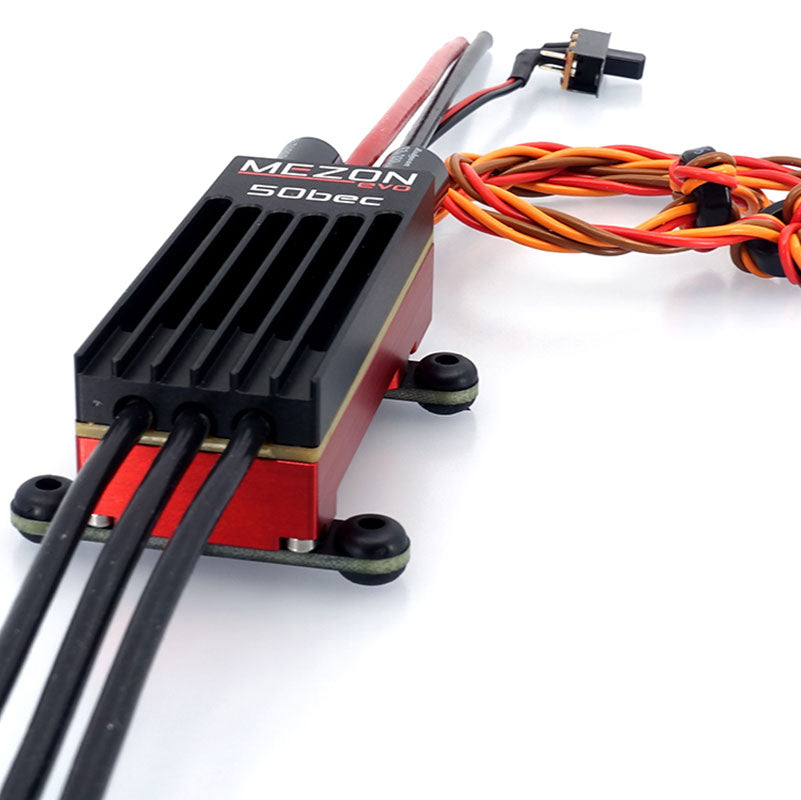

MEZON EVO 50 BEC controllers have an aluminium box which helps with efficient cooling.
MEZON EVO 50 BEC is a completely universal controller for models of airplanes, helicopters, ships and vehicles for users not only of JETI Duplex transmitters, but also of other RC systems.
Features
• full EX telemetry (voltage, current, capacity, revolution etc.)
• setup of device through EX Bus communication from JETI Duplex transmitter
• accurate governor and full support of helicopter models
• F3A mode for acrobatic planes
• adjustable brake with back energy recovering into accumulator
• powerful BEC with adjustable output voltage
• wide range of supply voltage 2 - 12 Lixx (max. 51V)
• bidirectional motor run is possible
• active proportional brake
• effective cooling
• compact dimensions
• user-friendly wizard for quick setup of the controller ("Quick Setup mode")
• in "Expert mode" access to all controller programming options
| Weight [g] | 109 |
|---|---|
| Dimensions [mm] | 28 x 22 x 85 |
| Sustained current [A] | 50 |
| Telemetry | Yes |
| Operational temperature [°C] | -10 to 85 |
| Supply Voltage [V] | 6 to 51 |
| Batteries LiXX | 2 to 12 |
| Voltage BEC [V] | 5 to 8.4 |
| Resistance in conducting state [mΩ] | 2.4 |
| Cable crossection (input/output) [mm²] | 2.5 / 2.5 |
| OPTO (optically separated radio signal from the power management) | No |
| Average Current BEC [A] | 15 |
| Peak Current BEC 1s [A] | 30 |
| Box | Aluminum |
