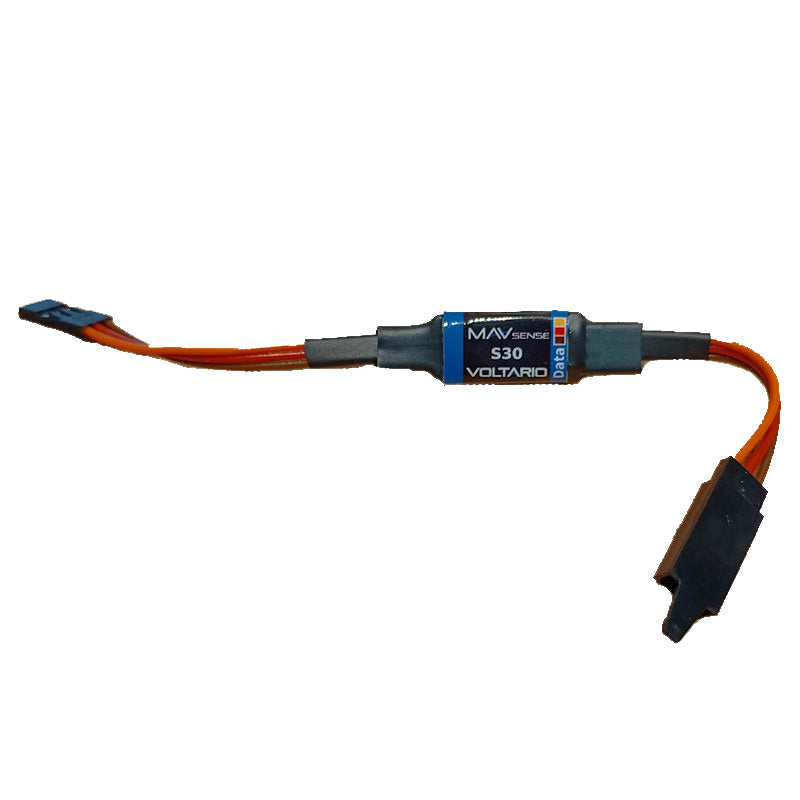

MAV Sense Voltario S30
Voltario S30 is used to monitor the power consumption of a single servo. It provides an additional way to set an overcurrent protection shutdown.
- Duplex telemetry (current, voltage, capacity)
- HOTT telemetry (current, voltage, capacity)
- Futaba Telemetry (1678 Port3 - Current, Voltage, Capacitance)
- JetiBox compatible
- Optional overcurrent shutdown with regeneration
Voltario S30 installation
Plug the Voltario S30 between receiver output channel and servo. The Voltario S30 works completely autonomously as a programmable fuse (this function must be configured first).
To display the telemetry data, you can connect the Voltario S30 to the receiver (telemetry input) using a JR cable.If you want to configure the device with a JETIBOX, you have to supply the JETIBOX with external voltage, since the red cable is not connected internally in the Voltario S30
|
Voltario S30 |
|
|
dimension |
25x12x5mm |
|
Weight incl. cable |
4g |
|
continuous current max. |
10A |
|
peak current (2s) |
30A |
|
temperature range |
-20 - 85° |
|
operating voltage |
4-12V |
|
telemetry |
Jeti Duplex, Hott, Futaba |
|
overcurrent protection |
Yes |
|
Cable |
0.25mm² (23AWG) |
