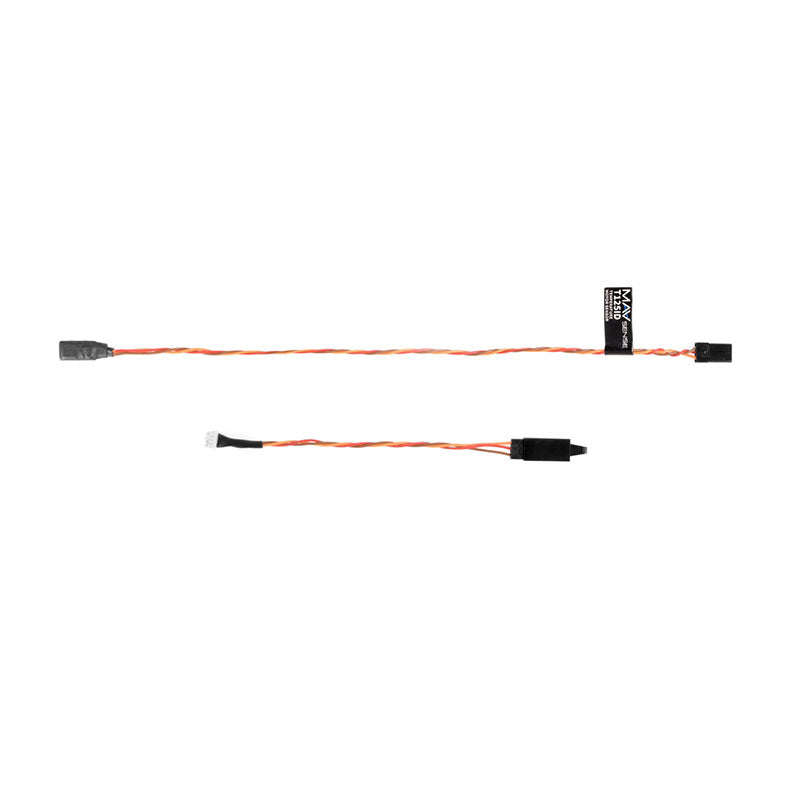

Temperature sensor for speed controllers from Ibex.
The T125D supports several telemetry protocols, adjustable high temperature alarms. Configuration via transmitter or PC software MAV Manager. Updatable firmware.
The T125D is a tiny temperature sensor that supports multiple telemetry protocols. The T125ID can communicate with the IBEX controllers as it offers direct temperature readings of the motor temperature to the controller. It also contains some memory space for predefined motor parameters. In case you don’t want to play with the IBEX ESC settings, use the T125ID sensor to store the motor parameters. As a result, the controller will read the motor settings and adjust its own behaviour.
Small dimensions. The sensor is connected directly to the IBEX ESC port. Temperature min/max values are logged. Automatic telemetry detection: Duplex EX, Hott, MSB, S.Bus2, P2Bus. Configurable alarms on high temperature. Configuration through the transmitter or MAV Manager PC software. Firmware updates. Communication with the IBEX controllers.
The set contents: T125ID temperature sensor, instruction manual.
|
Power supply [V] |
3.5 - 12 |
|
Length [mm] |
21 |
|
Width [mm] |
10 |
|
Height [mm] |
4 |
|
Weight [g] |
1 |
