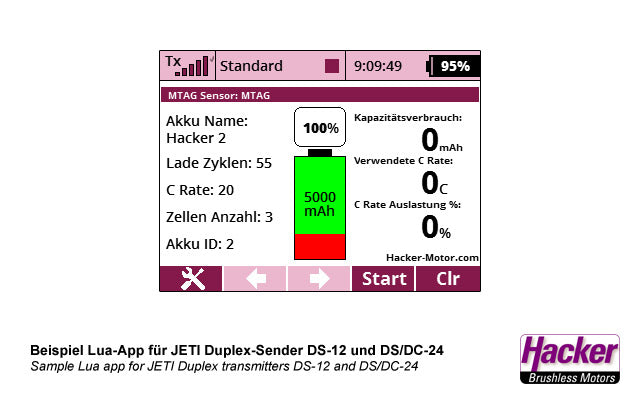

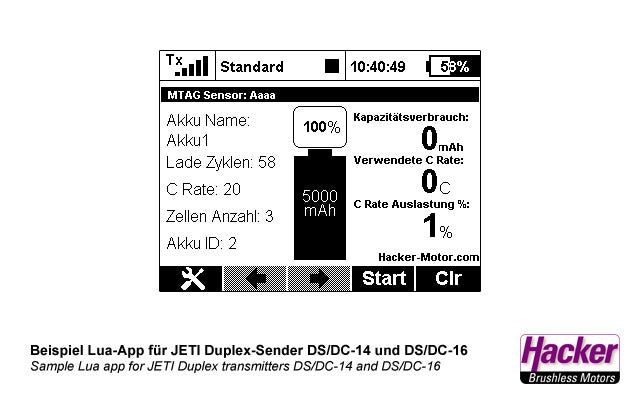

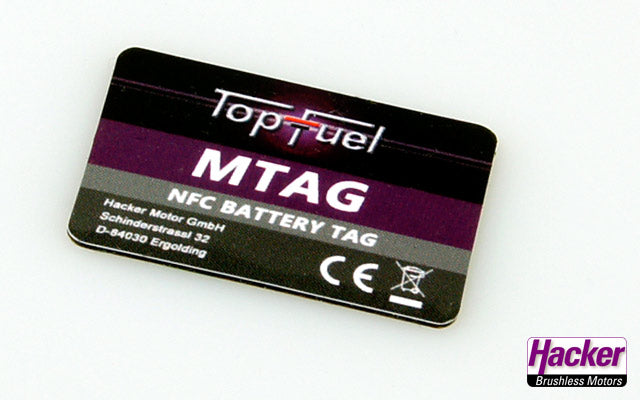

The TopFuel MTAG Battery Sticker is self adhesive and can easily be stick to any battery. In conjunction with the JETI Duplex MTAG Battery Reader the battery values can be stored by the user and used in telemetry from the JETI Duplex systems. For this we offer a free LUA App which can be found under the tab "Downloads".
The following values can be stored and displayed on the TopFuel MTAG Battery Sticker:
- Battery ID
- cycle number
- Capacity
- cell count
- discharge
- Status
All default values and names are recommendations only and can be renamed, deleted and overwritten by the user.
Compatible JETI duplex transmitters
The telemetry display is available in any JETI duplex transmitter with the latest firmware.
- JETI Duplex DS-12
- JETI Duplex DS/DC-14
- JETI Duplex DS/DC-16
- JETI Duplex DS/DC-24
Delivery contents

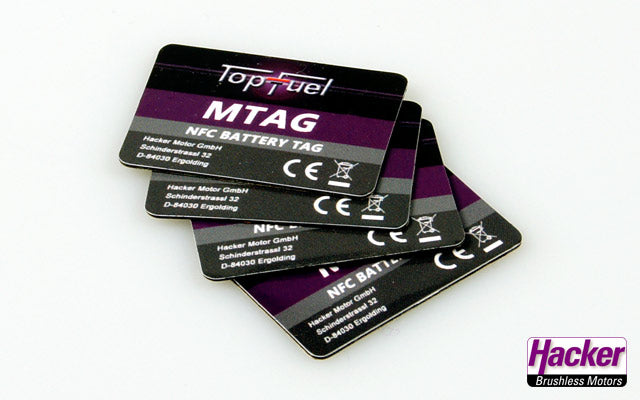

4 TopFuel MTAG Battery Sticker
| Weight [g] | 7 |
|---|---|
| Dimensions [mm] | 32 x 9 x 5 |
| Sustained current [A] | 15 |
| Telemetry | No |
| Operational temperature [°C] | -10 to 70 |
| Recommended input voltage [V] | 04 to 8.4 |
| Idle current [µA] | 35 |
| Pulse current [A] | 90 |
