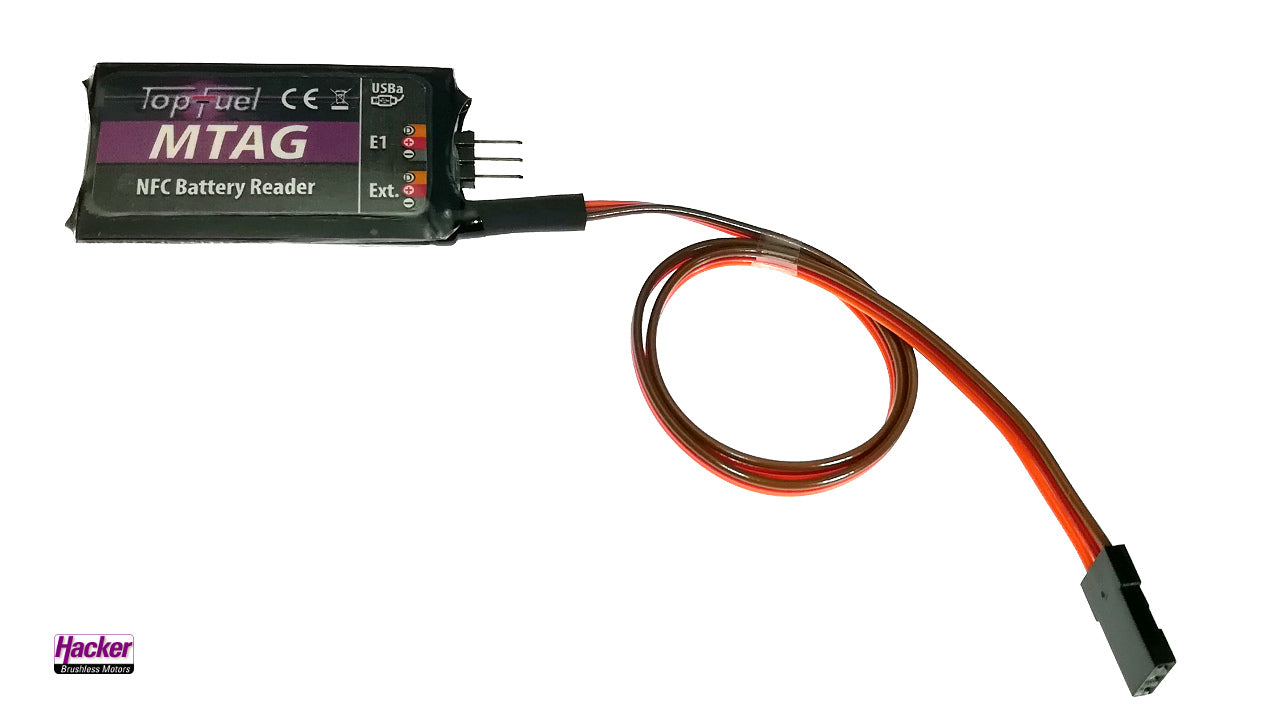

The Duplex 2.4 EX TopFuel MTAG Battery Reader is installed in the model under the battery. Connected to the ext. Input on the receiver, this sensor transmits all data stored on the MTAG chip for telemetry in the JETI Duplex transmitter or the JETIBOX.
Values on the MTAG chip
The values below can be saved and displayed on the MTAG chip:
- Battery ID
- Cycle number
- Capacity
- Cell count
- Discharge rate
- Status
All default values and names are only recommendations and can be renamed, deleted and overwritten by the user with this sensor.
Compatible JEIT Duplex transmitters

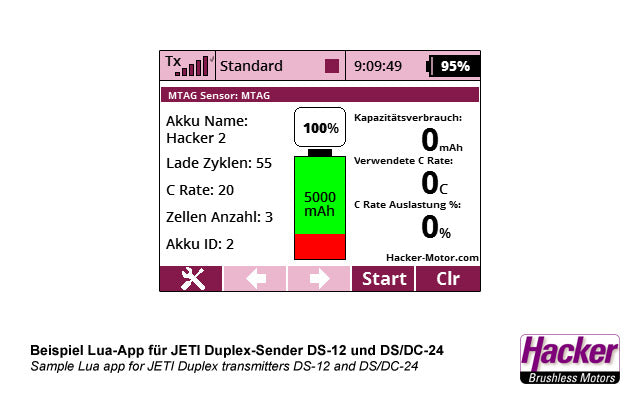

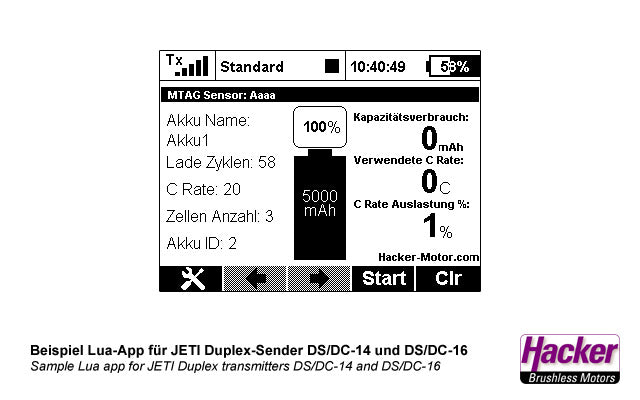

The telemetry display is available in every JETI Duplex transmitter with the latest firmware.
- JETI Duplex DS-12
- JETI Duplex DS/DC-14
- JETI Duplex DS/DC-16
- JETI Duplex DS/DC-24
Delivery contents
1 Duplex 2.4EX TopFuel MTAG Battery Reader
| Specifications | |
| Voltage supply | 3.5 - 8.4V |
| Current consumption | 15mA |
| Temperature range | -10 - 85°C (14 - 185°F) |
| Dimensions | 53mm x 26mm x 3mm (2.05in x 1.02in 0.12in) |
| Weight incl. cable | approx. 7g (0.25oz) |
| Maximum distance to MTAG chip on the battery | up to 3cm (1.18in) |
| Weight [g] | 7 |
|---|---|
| Dimensions [mm] | 32 x 9 x 5 |
| Sustained current [A] | 15 |
| Telemetry | No |
| Operational temperature [°C] | -10 to 70 |
| Recommended input voltage [V] | 04 to 8.4 |
| Idle current [µA] | 35 |
| Pulse current [A] | 90 |
