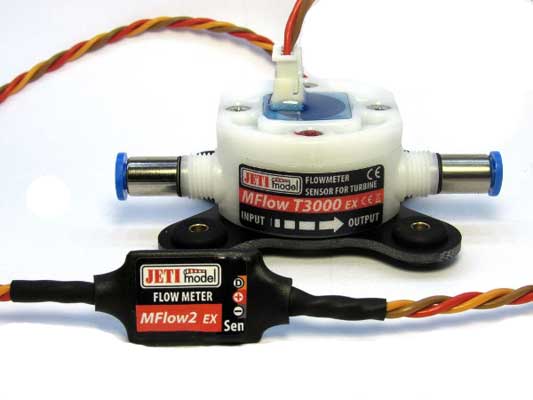

The MFlow2 Turbine 3000 is a telemetry sensor that measures the flow of the pumped fuel and calculates its amount in the tank.
The MFlow2-Turbine is a variant designed for the models powered by a jet engine, with consumption up to 3000ml/min.
- The sensor is compatible with the EX-BUS system
- Configuration with the device manager of the JETI DC/DS Tx
- Reset switch at the DC/DS Tx possible
- EX telemetry values: Actual flow, and tank level
- Adjustable parameters by the user, such as Tank volume, alarm at minimum level
- Firmware update via Jeti USBa
- EX telemetry values: Actual flow, and tank level
- Adjustable parameters by the user, such as Tank volume, alarm at minimum level
- Firmware update via Jeti USBa
Specifications MFlow turbine:
Measuring range [ml / min]: 50-3000
Measuring tolerance [%]: ± 2
Hose connection [mm]: 2x 4mm Festo
Dimensions [mm]: 77x41x30
Weight [g]: 40
Voltage range [V]: 5-8.4
Operating Temperature [° C]: -20 to 80
Measuring tolerance [%]: ± 2
Hose connection [mm]: 2x 4mm Festo
Dimensions [mm]: 77x41x30
Weight [g]: 40
Voltage range [V]: 5-8.4
Operating Temperature [° C]: -20 to 80
