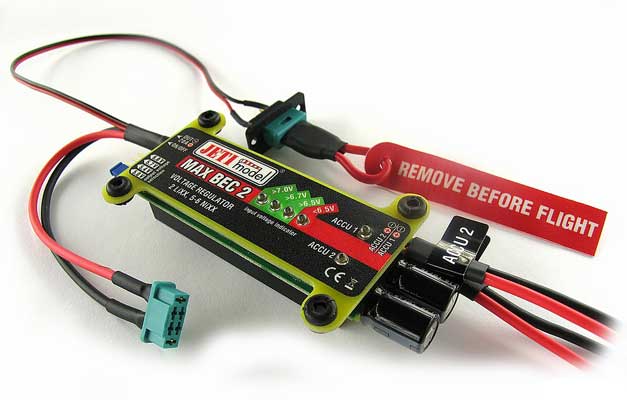

MAX BEC 2 is designed to power the receiver and servos in the model. MAX BEC 2 is a linear voltage stabilizer with an adjustable output voltage. The output voltage is set using a jumper and in one of four positions: 5.0V, 5.4V, 5.7V or 6.0V. MAX BEC 2 can be powered using NiXX and Li–XX cells. MAX BEC also gives an indication of used capacity of the battery with four LED´s.
An integral part of the MAX BEC 2 is an electronic switch that uses a highly efficient type of MOSFET transistor. The main benefits of the MAX BEC 2 include a high voltage rating (to 12 cells NiXX) and low current in the off state (170 μA). The analogue voltage stabilization does not contribute to radio interference.
|
Weight [g] |
85 |
|
Dimensions [mm] |
100 x 29 x 16 |
|
Sustained current [A] |
12 |
|
Peak current (max 30s) [A] |
20 |
|
Telemetry |
No |
|
Operational temperature [°C] |
-10 ... 130 |
|
Recommended input voltage [V] |
5,5 ... 8,4 |
|
Output voltage [V] |
5,0 / 5,4 / 5,7 / 6,0 |
|
Idle current [µA] |
170 |
|
Max. power loss [W] |
20 |
|
Number of battery inputs |
2 |
|
Input voltage max. [V] |
16 |
