The switching voltage regulator HiCOPTER is supposed to act as a current supply for accessories in the XCopters. The switching voltage regulators HiCOPTER 12V make it possible to use wide range of input voltages from 4S up to 12S Li-XX cells.

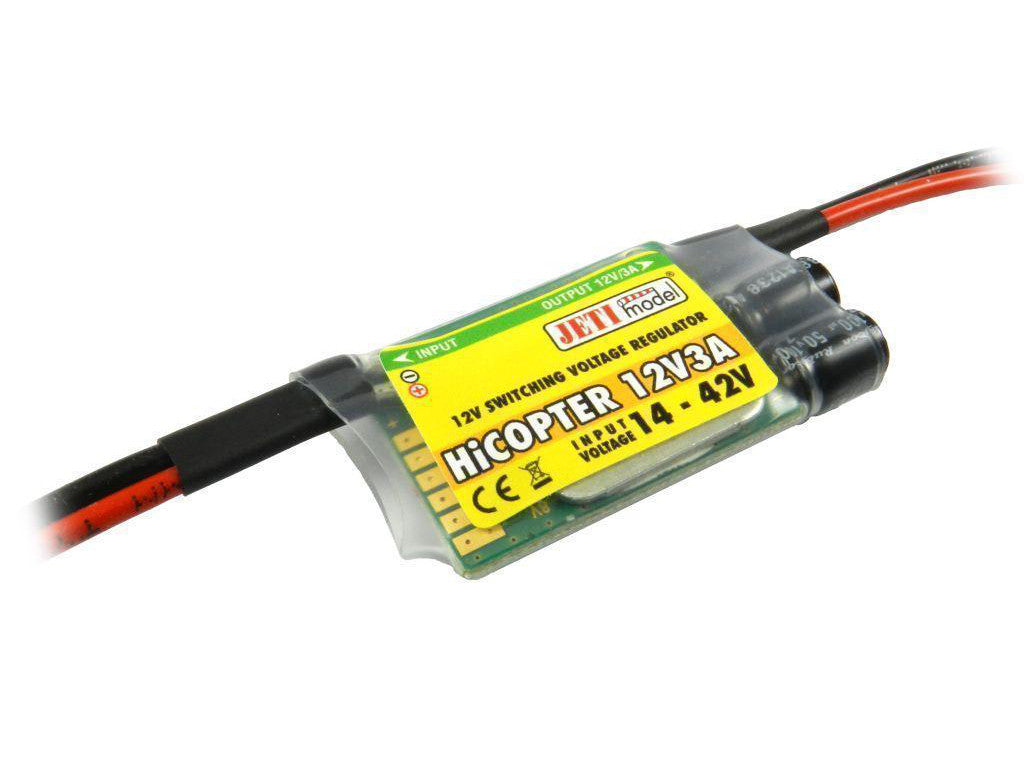

The switching voltage regulator HiCOPTER 12V3A comprises of two input (IN) and two output (OUT) cables with cross-section of 1mm2 . The batteries are connected to the input cables, the output cables are used to connect the powered accessories.
Table showing the dependence of maximum continuous current loads on input voltages
|
Number of Lixx cells |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
|
Continuous output current* [A] |
4.7 |
4.4 |
3.9 |
3.7 |
3.3 |
3.3 |
2.7 |
* maximum continuous current values are valid only for operating conditions with sufficient cooling airflow
|
Weight [g] |
29 |
|
Dimensions [mm] |
60 x 28 x 10 |
|
Telemetry |
No |
|
Operational temperature [°C] |
-20 ... 85 |
|
Recommended input voltage [V] |
14 ... 51 |
|
Output voltage [V] |
12 |
|
Number of battery inputs |
1 |
|
Input voltage max. [V] |
51 |
