Please note this R900Mhz Receiver is not suitable for the Jeti DS12 or the DC/DS16-11 NG Radios

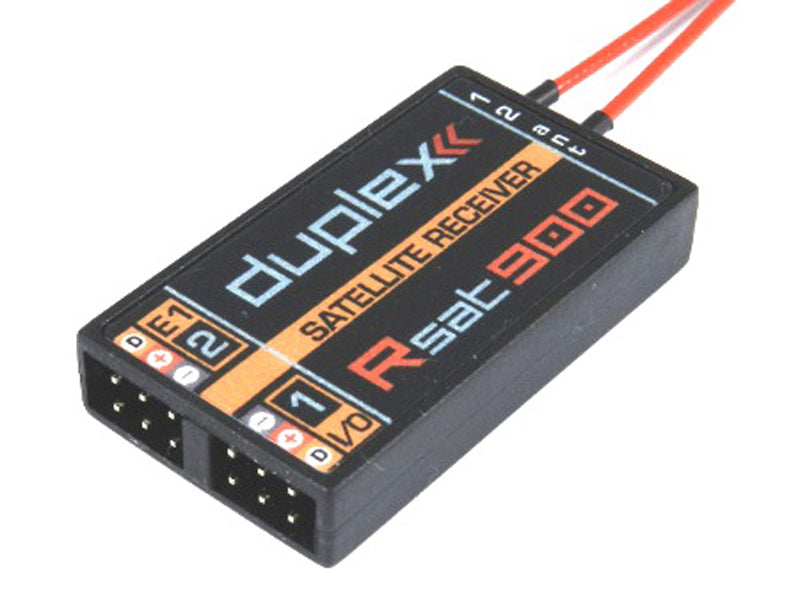

DUPLEX receiver RSAT 900Mhz - especially for the 900Mhz Back up System of the Jeti Duplex DC-24 and DS-24 transmitter - integrated expander for multiple sensors - supported protocols: PPM, EXBUS, EX, UDI - programmable functions of the outputs - compact dimensions - 32-bit processor - full coverage - special flat antennas for optimal reach - programmable via the JETIBOX and wirelessly via the duplex DC / DS transmitter
Weight [g]: 11
Dimensions [mm]: 40 x 22 x 7
Channels: up to 24 as an additional backup receiver
Operating only at 2.4 GHz: No
Temperature range [° C]: -10 ... 85
Compatible protocols : DUPLEX EX bus, UDI, PPM
Antenna cable length [mm]: 2 x 280
Flat antenna [mm]: 80 x 10 x 1.5
Voltage range [V]: 3.2 to 8.4
Average Current [mA]: 30
Output power [dBm] 14
Receiver sensitivity [dBm] -110
Frequency range: 863 - 870MHz (used for EU)
