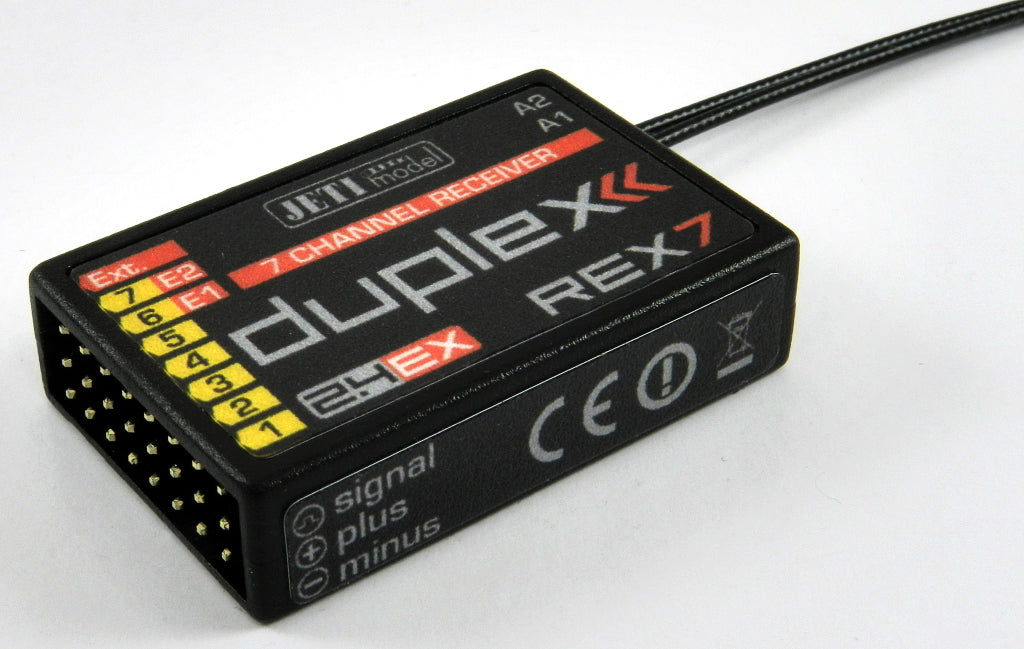

DUPLEX 2.4EX receiver REX 7
To update this receiver or sensors you will need a Jeti USB adaptor available HERE
- Internal memory for data logging and control signals
- Integrated Expander for up to 3 sensors
- Supported protocols: PPM, EXBUS, EX, UDI
- programmable functions of slots
- support the direct inputs
- compact dimensions
- 32 bit processor
- high range
- programmable via the Jeti Duplex and wirelessly via the DC / DS transmitter
Specifications:
|
Weight [g] |
13 |
|
Dimensions [mm] |
42 x 28 x 11 |
|
Number of channels |
7 |
|
Telemetry |
Yes |
|
Operational temperature [°C] |
-10 ... 85 |
|
Compatible protocols |
DUPLEX 2.4GHz EX, EX Bus |
|
Antenna Length [mm] |
2 x 200 |
|
Supply Voltage [V] |
3,5 - 8,4 |
|
Average Current [mA] |
75 |
|
Satellite receiver support |
Yes |
|
Output Power [dBm] |
15 |
|
Receiver Sensitivity [dBm] |
-106 |
