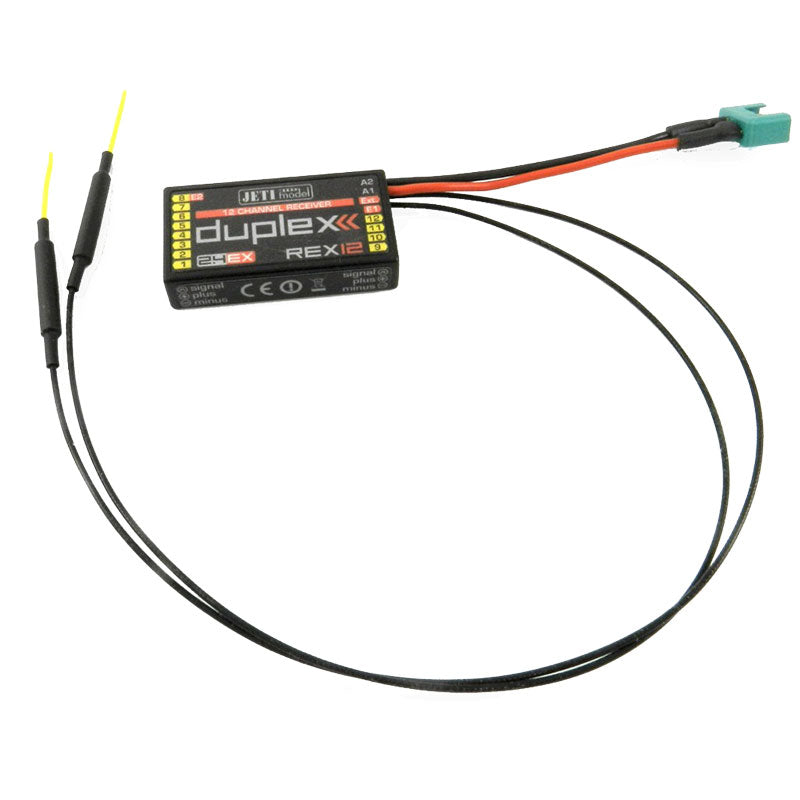

Jeti Model Duplex 2.4EX receiver REX 12 EPC
To update this receiver or sensors you will need a Jeti USB adaptor available HERE
- Internal memory for data logging and control signals.
- Integrated Expander for up to 3 sensors.
- Supported protocols: EX-Bus, EX, PPM, UDI, S-Bus.
- 24 channel support for servos and EX-Bus.
- Programmable functions of slots.
- Support for direct inputs.
- Compact dimensions.
- 32bit processor.
- Full range.
- Programmable on the Jeti Duplex and wirelessly via the DC / DS transmitter.
- Antenna with "balun" to increase the input sensitivity (see picture).
|
Telemetry |
Yes |
|
Operational temperature [°C] |
-10 to 85 |
|
Compatible protocols |
DUPLEX 2.4 GHz EX-Bus, EX, PPM, UDI, S.Bus |
|
Supply Voltage [V] |
3.5 - 8.4 |
|
Average Current [mA] |
75 |
|
Satellite receiver support |
Yes |
|
Output Power [dBm] |
15 |
|
Receiver Sensitivity [dBm] |
-106 |
|
Assist stabilization |
No |
|
Frequency |
2.4 GHz |
|
Weight [g] |
24 |
|
Dimensions [mm] |
51 x 28 x 11 |
|
Number of channel Pin outs |
12 |
|
Antenna Length [mm] |
2 x 400 |
