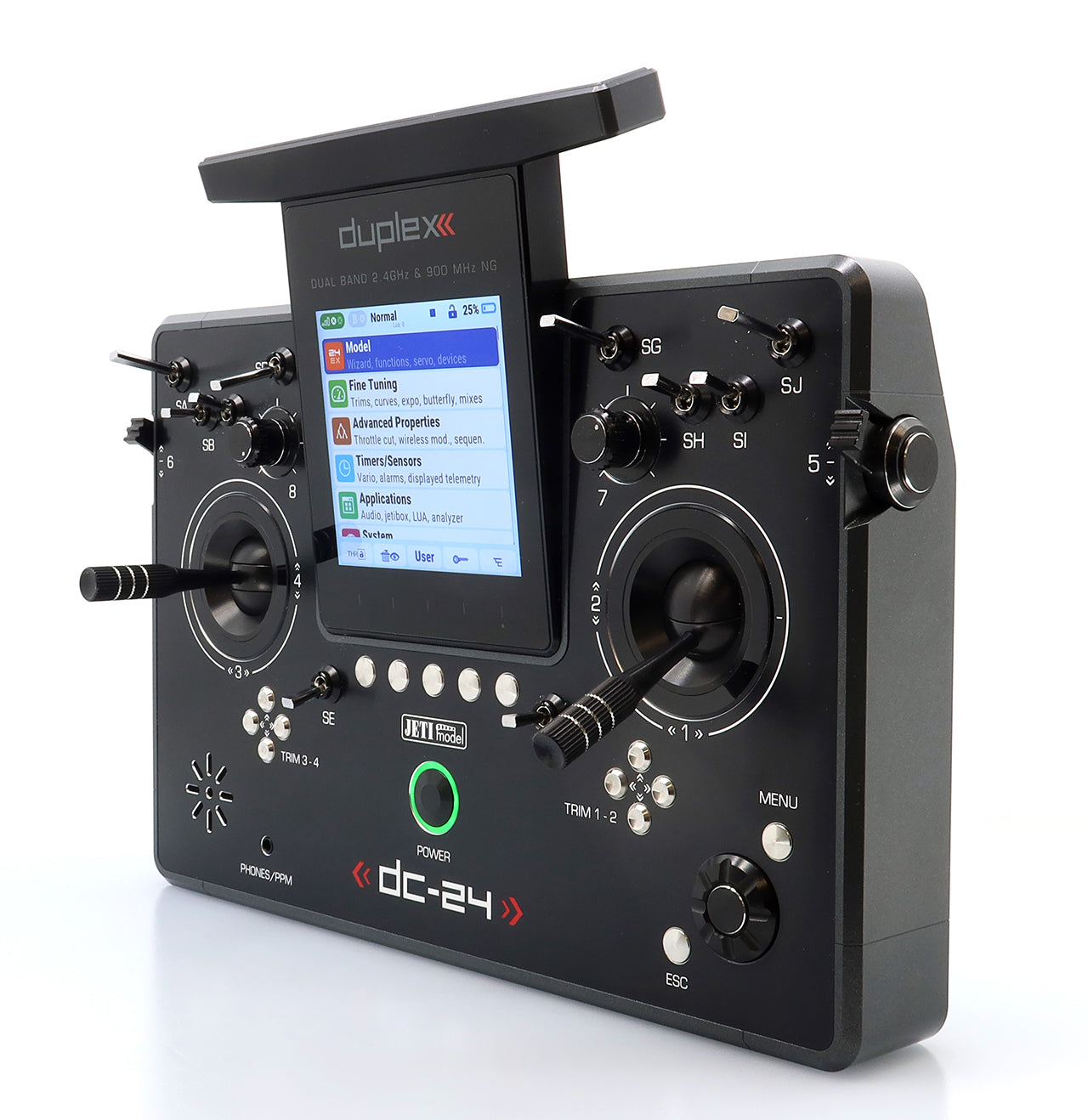

Jeti Duplex Tray Transmitter DC-24 II Rev.2 - Carbon Line Gray DC24 with REX 12 Assist Receiver & Case
Please Note: Due to the choice of Colour for the Jeti Transmitters we order these in on demand. Delivery is normally within three weeks.
You are welcome to check stock availability before ordering by calling 07740 181861
Scope of delivery
DC-24 II REV2. Tray transmitter - Carbon Line Grey (delivery condition Mode 2, control mode very easy to change), transmitter battery installed, charger for transmitter battery, sturdy carrying case, transmitter cross strap, DUPLEX 2.4EX REX 12 Assist
Features
- 24 full-featured control channels
- 3 HF modules (2x 2.4 GHz + 1x 900 MHz NG)
- 4-inch colour display, 480x480px
- Display positioned at an angle in the housing
- New design of the graphical user interface (menu)
- USB-C port (for charging / PC / MAC connectivity)
- Audio transmission via Bluetooth to a headset (e.g. vario sound, announcements, alarms)
- WLAN connection
- Android / iOS app for telemetry display for smartphones
- Reduced weight
- 4 model types (aircraft/helicopter/multicopter/boat, truck)
- MP3 player
- Telemetry processes up to 80 sensor values
- Voice input commands
- Vibration alarm on the control sticks
Transmitter hardware
- New stick assemblies, fully adjustable from the outside
- Stick positions determined by Hall sensors (without potentiometers)
- Control resolution 4096 steps
- Colour display, backlit
- Rotatable stick assemblies
- Full aluminium control sticks/units, length-adjustable, ball-bearing mounted
- Internal memory
- Integrated Li-ion battery for long operating time
- Charger
- Aluminium transport case
- Voice output
- Headphone jack
- Digital trims
- Lacquer aluminium housing
Transmitter software
- 2.4 GHz DUPLEX EX
- 24 control channels
- Customisable menu navigation
- Virtually unlimited setting options
- Virtually unlimited number of model memories
- Firmware update via USB/Wi-Fi
- Ultra-fast control response
- Power management system for longer operating time
- PC interface
- 4 adjustable model types (aircraft/helicopter/function model/multicopter)
- 8 languages (EN / DE / CZ / FR / IT / PT / SE)
Telemetry functions
- Voice output of telemetry warnings and telemetry values
- Display of telemetry data in real time on the transmitter display
- Recording of telemetry data
- PC transfer, storage and editing of telemetry values
- Saving (backup) of model data and transmitter settings on the PC
900 MHz NG receiver system
The 900 MHz NG receiver is designed specifically for use with the DC/DS-24. It is an independent, second transmission system in a second frequency range. When this system is used, the model can still be controlled even if there is interference on the 2.4 GHz band (e.g. from microwave radio, helicopter flights for television broadcasts, etc.). The 900 MHz NG backup system only becomes active when this occurs. It therefore serves to significantly increase safety in high-quality models. Of course, this backup system can be activated or deactivated separately for each model. It is always used in conjunction with the 2.4 GHz transmission system, not individually.
Technical specifications
- Dimensions [mm] 230 x 270 x 40
- Weight [g] ~1400
UK Spec Radio is supplied with
- DC-24ll Grey Lacquer Multimode Transmitter
- Supplied as standard Mode 2 (adjustable mode 1,2,3,4,5)
- Transmitter battery Power Ion 6200mAh (inside TX)
- Battery charger for transmitter UK spec
- NEW RED aluminium carrying case
- REX12 Assist receiver 2.4Mhz
- Cross strap 4 point harness
- USB C computer cable
- Jeti TX Mat and tools
