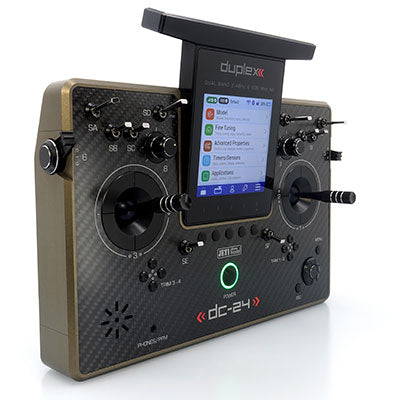

Jeti Duplex DC-24 II - Carbon Line Bronze anodized
AVAILABLE NOW
The next generation of the DC-24 II transmitter series with a unibody design offers a redesigned and even lighter frame for better user comfort. Now with the addition of supporting Wi-Fi and Bluetooth connection to smartphones. A very powerful processor with a large memory enables high-quality texture settings and the use of a higher resolution on a completely new and larger display. The display already has improved graphics that help the user with better orientation in the menu.
Main features:
- 4” LCD with high backlight for sunlight readability
- Bluetooth connectivity for headphones
- Online telemetry via Bluetooth for smartphones
- Wi-Fi module
- Application for displaying telemetry on smartphones Android/iOS
- 900 MHz NG backup system
- New graphical design of the user interface (menu)
- Weight saving
- One connector for outputs - PPM and Phone
- USB C connector for charging and connection with PC/MAC
- Full compatibility with Duplex system and previous JETI transmitters
- New colours for the frame
UK Spec Radio is supplied with
- DC-24ll Carbon Line Bronze Multimode Transmitter
- Supplied as standard Mode 2 (adjustable mode 1,2,3,4,5)
- Transmitter battery Power Ion 6200mAh (inside TX)
- Battery charger for transmitter UK spec
- NEW RED Aluminium carrying case
- REX12 Assist receiver 2.4Mhz
- Cross strap 4 point harness
- USB C computer cable
- Jeti TX Mat and tools
|
Weight [g] |
1400 |
|
Transmitter Aluminium Case |
Yes |
|
Transmitter Battery Pack (mAh) |
6200 |
|
Backlit LCD |
4 |
|
Memory, SD Card |
8 GB |
|
Gimbal Hall Sensors/Vibration |
Yes/Yes |
|
Stick Resolution |
4096 |
|
Transmitter Frame |
Aluminium |
|
Gimbals & Buttons |
Aluminium |
|
Number of antenas 2.4GHz/900MHz |
4/1 |
|
RF modules 2.4GHz/900MHz |
2/1 NG |
|
Control Inputs (Stick/Switch/Knob) |
18 (up to 20) |
|
Dimensions [mm] |
230x270x40 |
|
Output Power - 2.4GHz [mW] |
100 |
|
Operational temperature [°C] |
- 10 to 60 |
|
Channels |
24 |
|
Control Inputs (Stick/Switch/Knob) |
18 |
|
Backup Module 900MHz |
Yes |
|
Flight Modes |
10 |
|
Free Mixes |
30 |
|
Data Graphs |
Yes |
|
Audio Player |
Yes |
|
Logical Switches |
24 |
|
Number of Remote Commands |
24 |
|
Servo Sequencer |
10 |
|
Timers |
10 |
|
Displayed Telemetry Values |
40 |
|
Sound on Events |
40 |
|
Alarms |
40 |
|
Vibration Alarms |
Yes |
|
Voice Output |
Yes |
|
MP3 |
Yes |
|
Microphone |
Yes |
|
Gyro Settings |
3 |
|
Servo Balancer |
Yes |
|
Function Curves |
Yes |
|
Throttle Limiter (heli) |
Yes |
|
Variometer |
Yes |
|
Flight Mode Trim |
Yes |
|
Data Stream Logging |
80 |
|
Telemetry Controls |
64 |
|
Voice Commands |
16 |
|
Lua Apps |
10 |
|
Ditex Servo Telemetry |
16 |
|
Double Path |
Yes |
|
Accelerometer |
No |
|
Online telemetry via Bluetooth for smartphones |
Yes |
|
Bluetooth connectivity for headphones |
Yes |
|
Wi-Fi module |
Yes |
