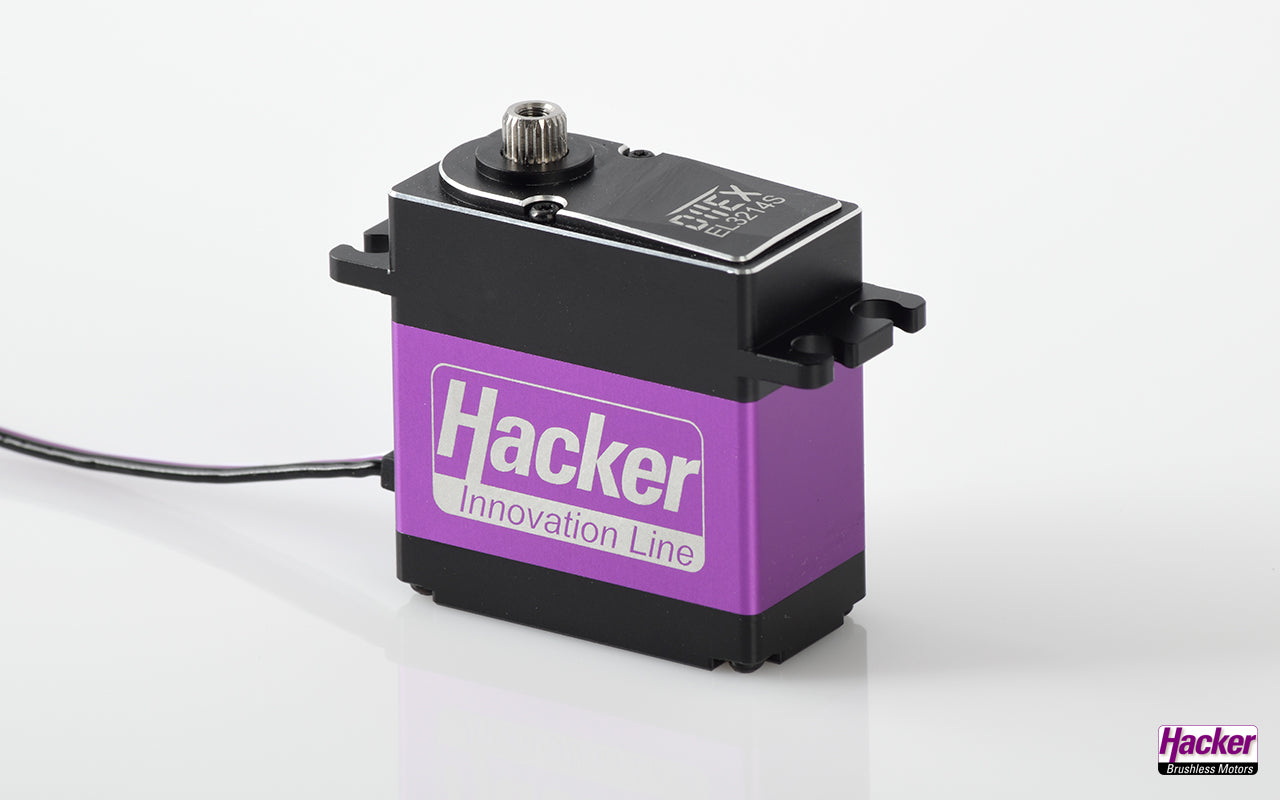

DITEX EL3214S
Product description and features
Standard servo with all-aluminium housing and metal gearbox.
32.0 kilograms of actuating force at 7.4 volts and an actuating speed of 0.14 seconds for 60 degrees.
Suggested application area
Larger model aircraft, powerful applications such as landing flaps, ships or cars.
Delivery contents

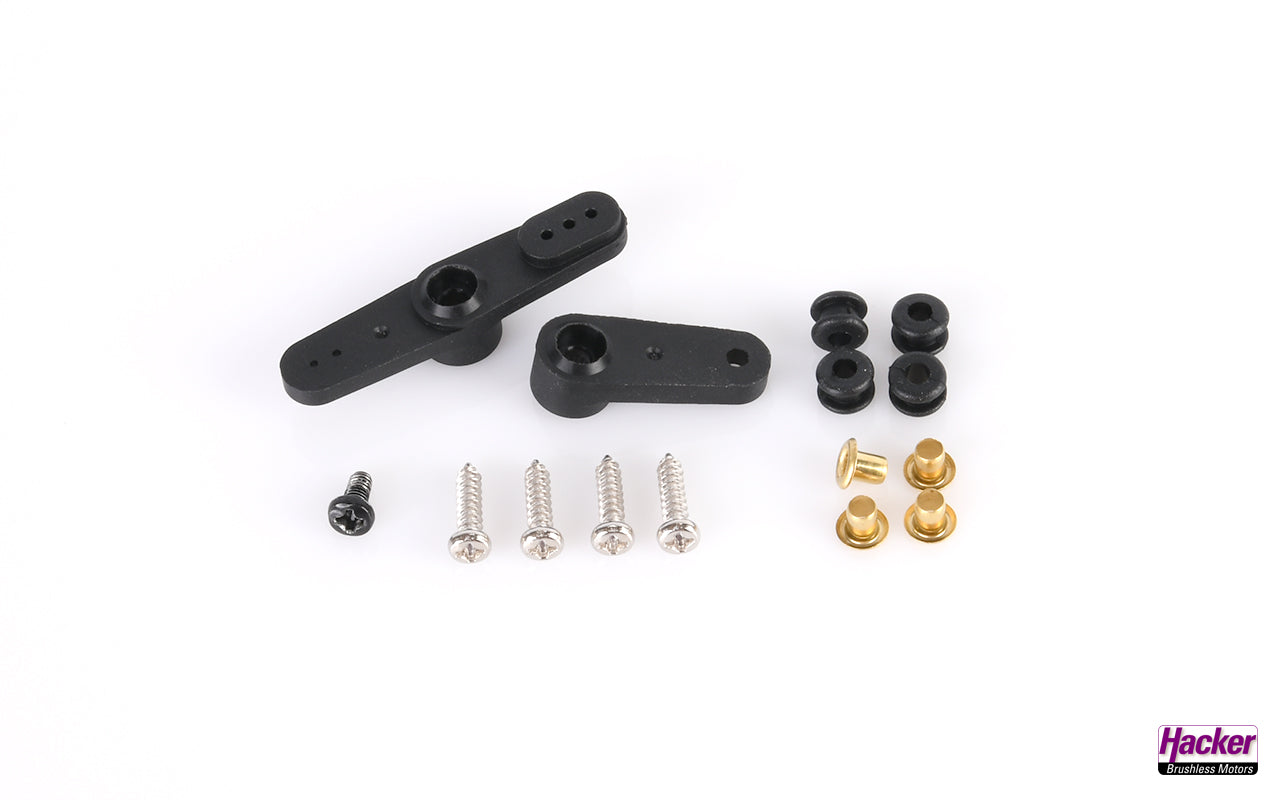

1 DITEX EL3214S, servo arms and fixing material.
Recommended application area Larger flight models, strong applications e. g. flaps, ships or R/C cars.
Classification Standard

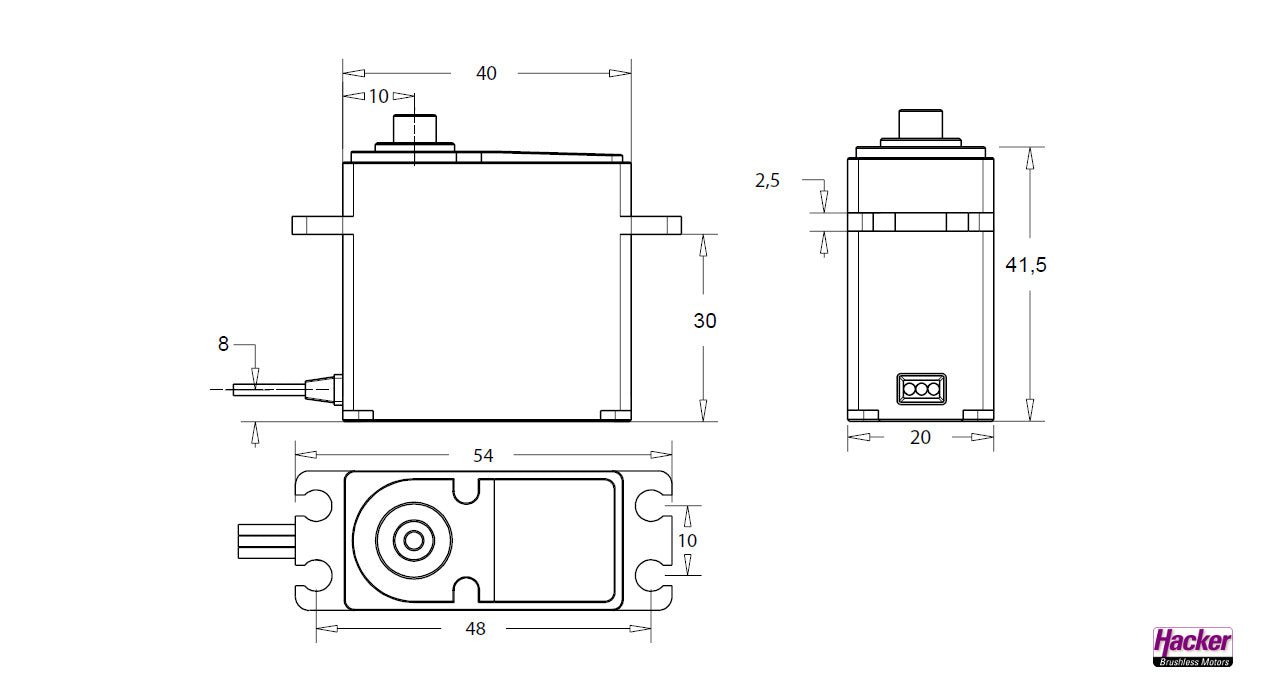

Dimensions and weight
Length 40mm (1.57in)
Width 20mm (0.79in)
Height 41.5mm (1.63in)
Weight 85g
Weight incl. connection cable 85g (3oz)
Specifications
High voltage capable yes
Voltage 1 (V1) 6V
Voltage 2 (V2) 7.4V
Max. input voltage 8.4V
Regulating time V1/60° 0.18s
Regulating time V2/60° 0.14s
Pulling load V1 25kg/cm
Pulling load V2 32kg/cm
Frequency 55Hz to 333Hz
Outer diameter output in mm 5,9
Housing type Aluminium
Motor type Coreless
Transmission type Steel
Number of output cogs 25 (Futaba/Savöx compatible)
Angle measurement Potentiometer
Programmable no
Soft start no
Telemetry no
