DITEX EL0809MD
Product description and features

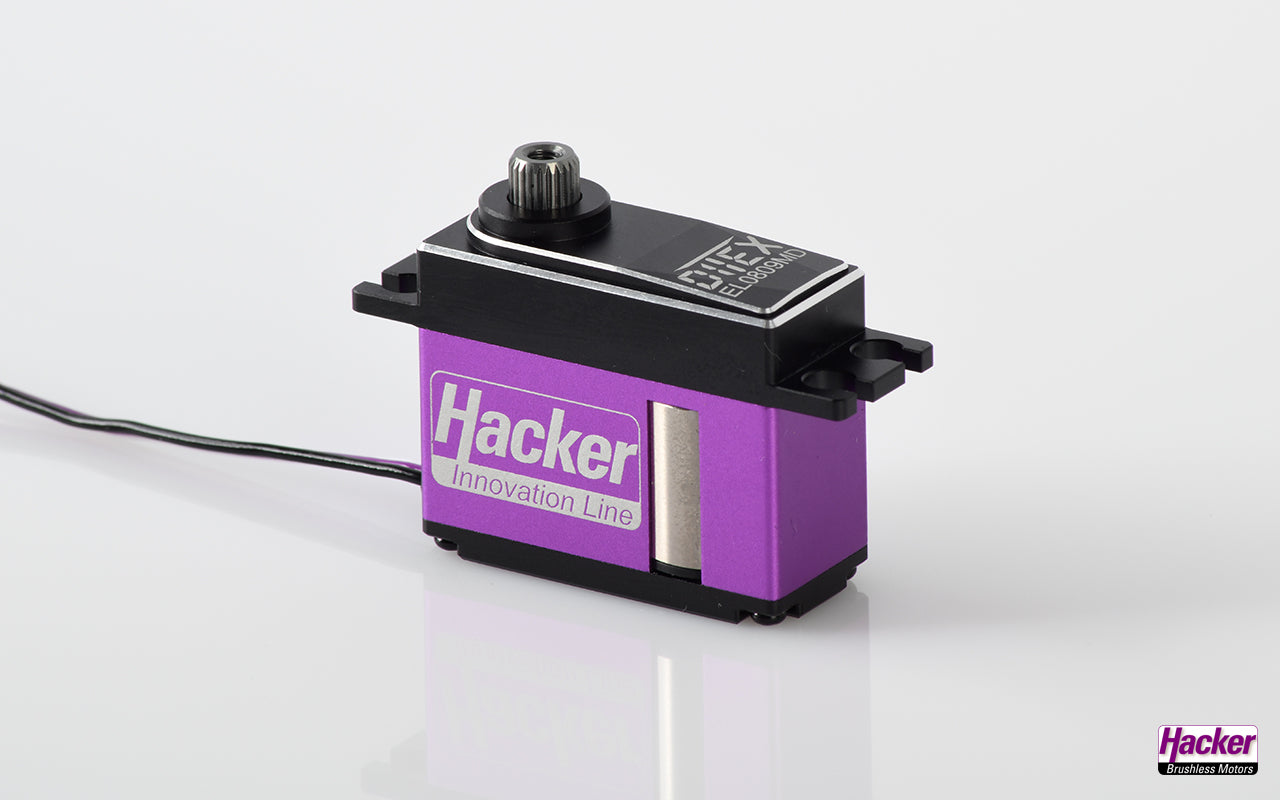

Midiservo with plastic/aluminium housing and metal gear.
8.0 kilograms of positioning force at 7.4 volts and a positioning speed of 0.08 seconds for 60 degrees.
Suggested application area
Medium powered model aircraft, model gliders or 500 class 3D helicopters. Approx. size 60" aircraft.
Delivery contents

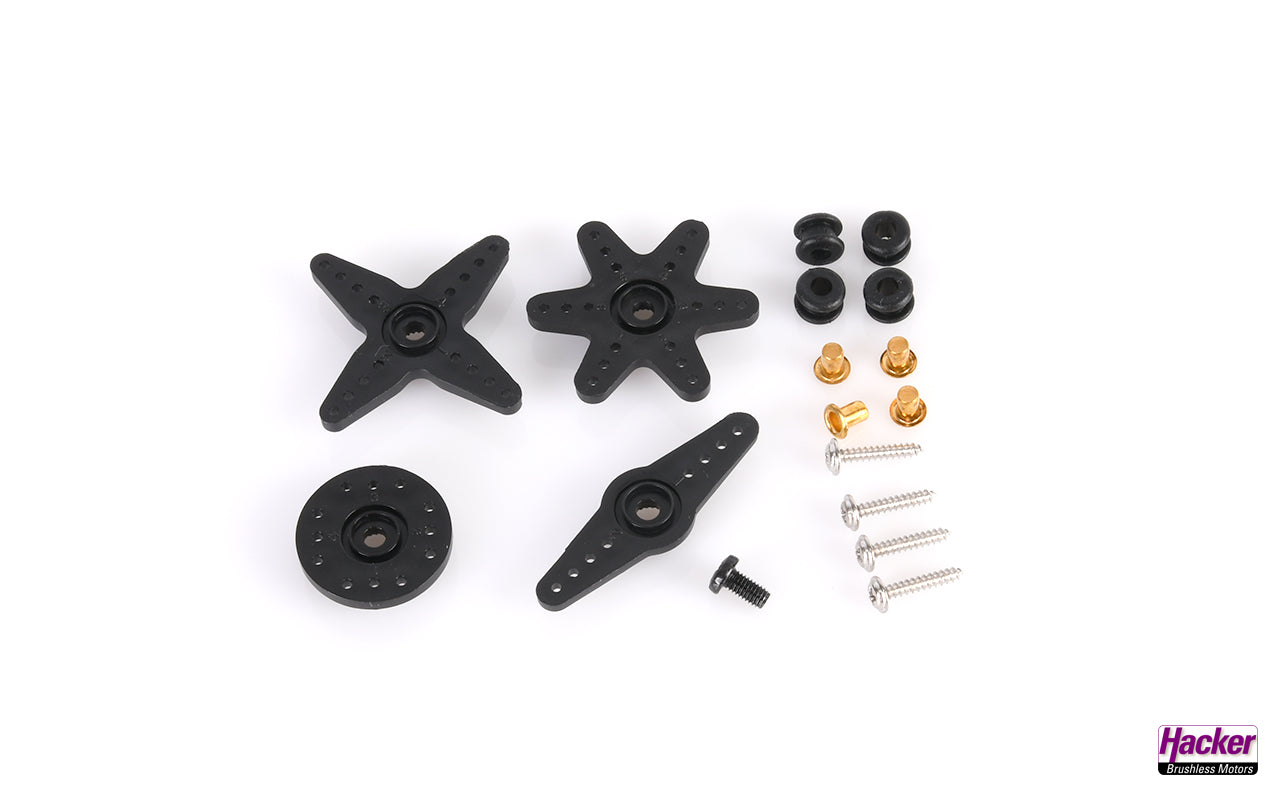

1 DITEX EL0809MD, servo arms and fixing material.
General
Recommended application area Middle sized engine models, glider models or 3D helicopters of 500 class. Size ca. 60" aircraft.
Classification Midi

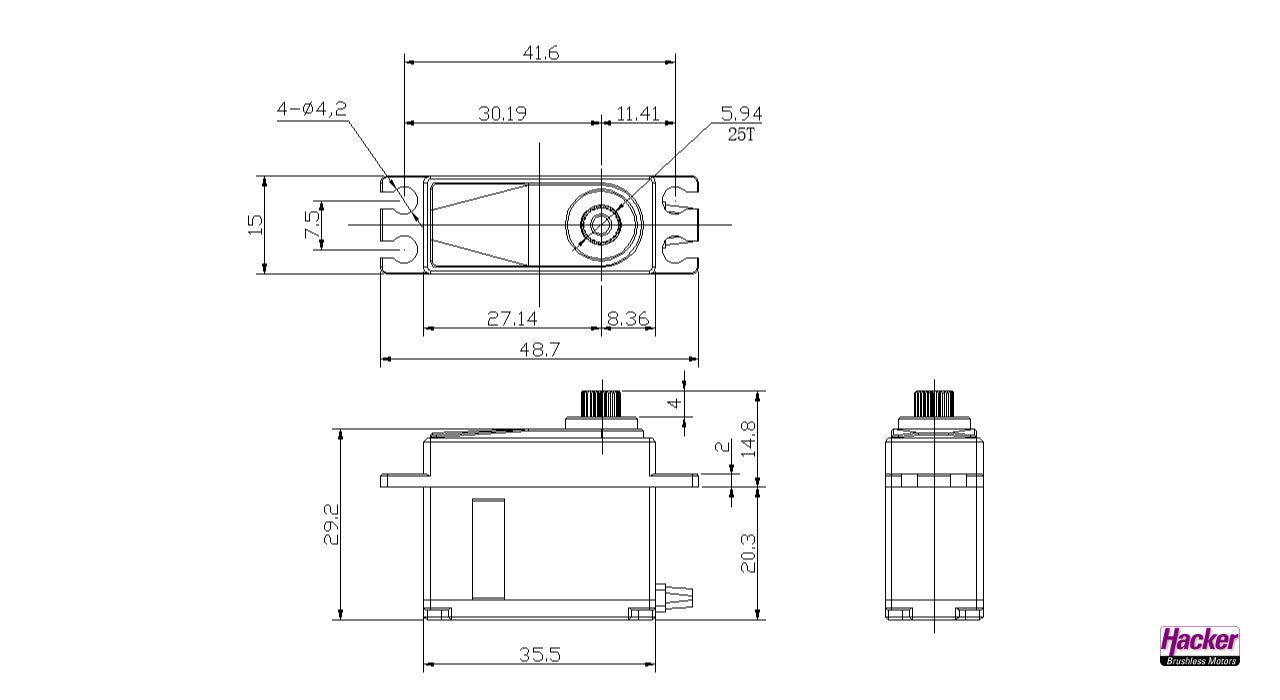

Dimensions and weight
Length 35.5mm (1.4in)
Width 15mm (0.59in)
Height 29.2mm (1.15in)
Weight incl. connection cable 40g (1.41oz)
Specifications
High voltage capable yes
Voltage 1 (V1) 6V
Voltage 2 (V2) 7.4V
Max. input voltage 8.4V
Regulating time V1/60° 0.12s
Regulating time V2/60° 0.09s
Pulling load V1 6kg/cm
Pulling load V2 8kg/cm
Frequency 55Hz bis 333Hz
Outer diameter output in mm 5,9
Housing type Aluminium
Motor type Coreless
Transmission type Titanium
Number of output cogs 25 (Futaba/Savöx compatible)
Angle measurement Potentiometer
Programmable no
Soft start no
Telemetry no
