DITEX EL0315M
Product description and features

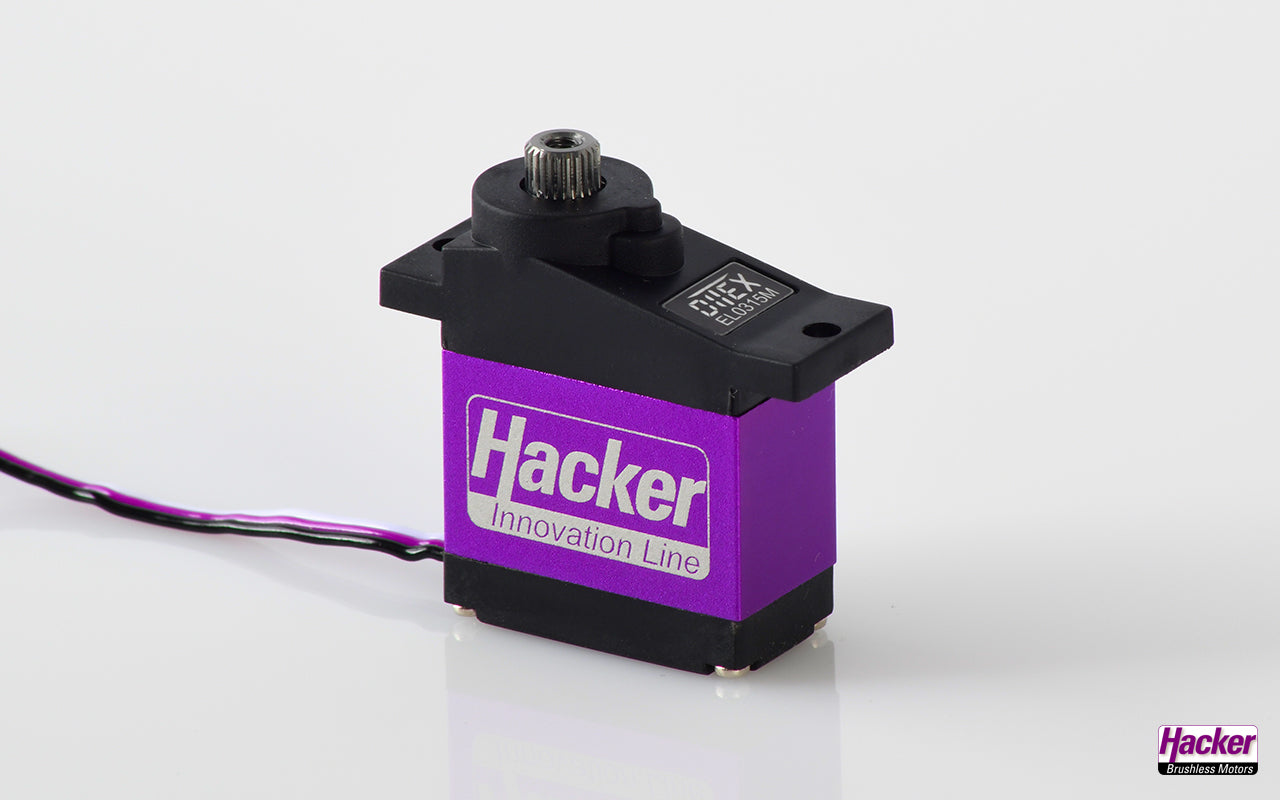

Micro-servo with plastic housing and metal gearbox.
3.8 kilograms of positioning force at 6.0 volts and a positioning speed of 0.13 seconds for 60 degrees.
Suggested application area
Micro-Servo for small models.
Delivery contents

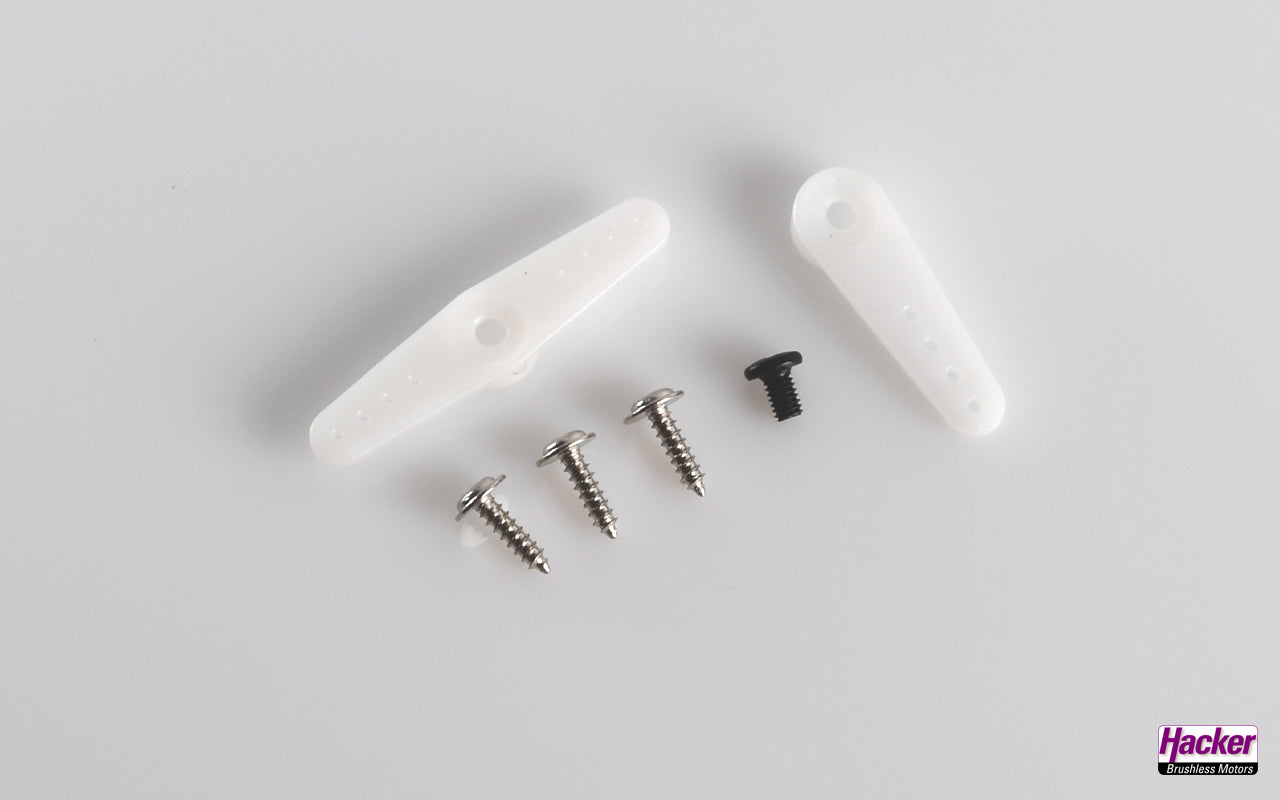

1 DITEX EL0315M, servo arms and fixing material.
General
Recommended application area Micro servo made of full aluminium for smallest applications.
Classification Micro

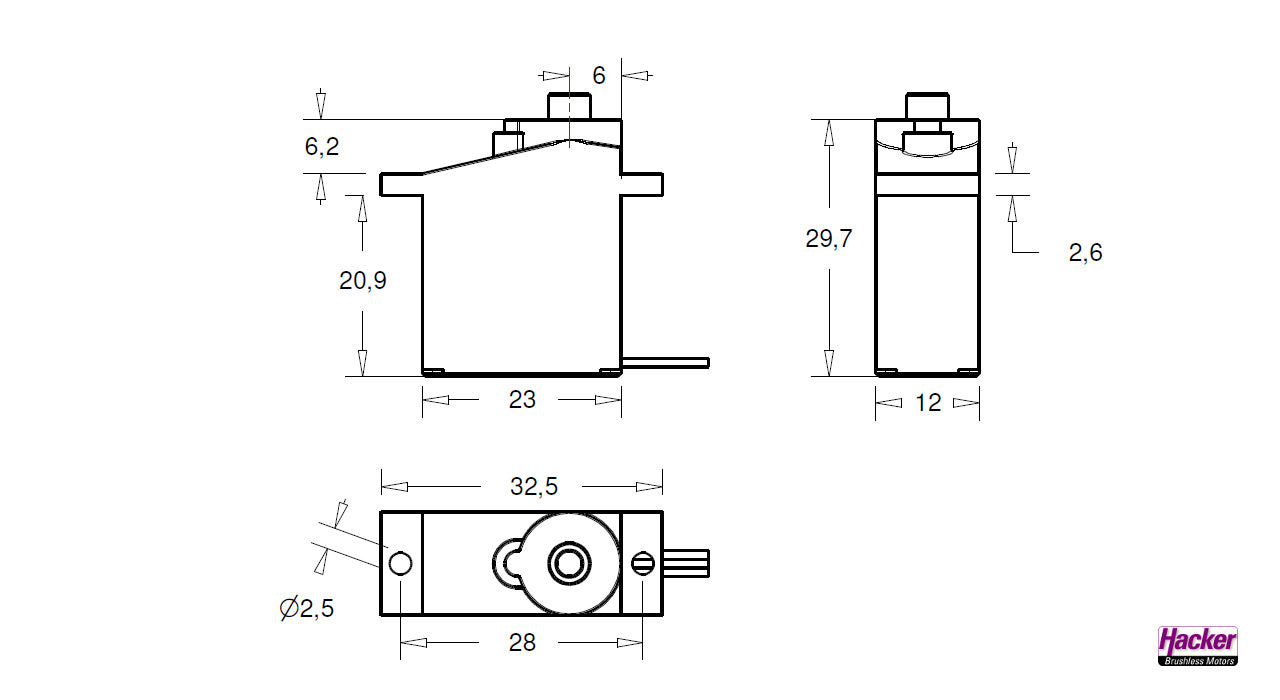

Dimensions and weight
Length 20mm (0.79in)
Width 11.3mm (0.44in)
Height 21mm (0.83in)
Weight incl. connection cable 11g (0.39oz)
Specifications
High voltage capable no
Voltage 1 (V1) 6V
Max. input voltage 6V
Regulating time V1/60° 0.065s
Pulling load V1 1.1kg/cm
Frequency 55Hz to 333Hz
Outer diameter output in mm 4,9
Housing type Aluminium
Motor type Coreless
Transmission type Titanium/Copper
Number of output cogs 25 (Futaba/Savöx compatible)
Angle measurement Potentiometer
Programmable no
Soft start no
Telemetry no
