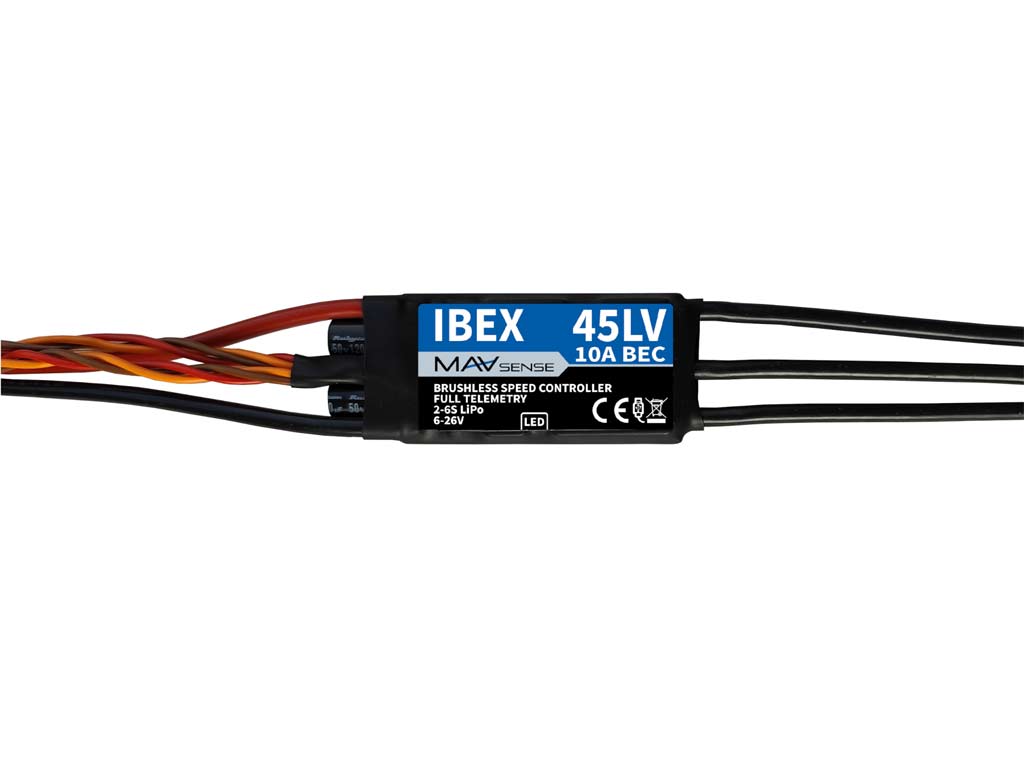

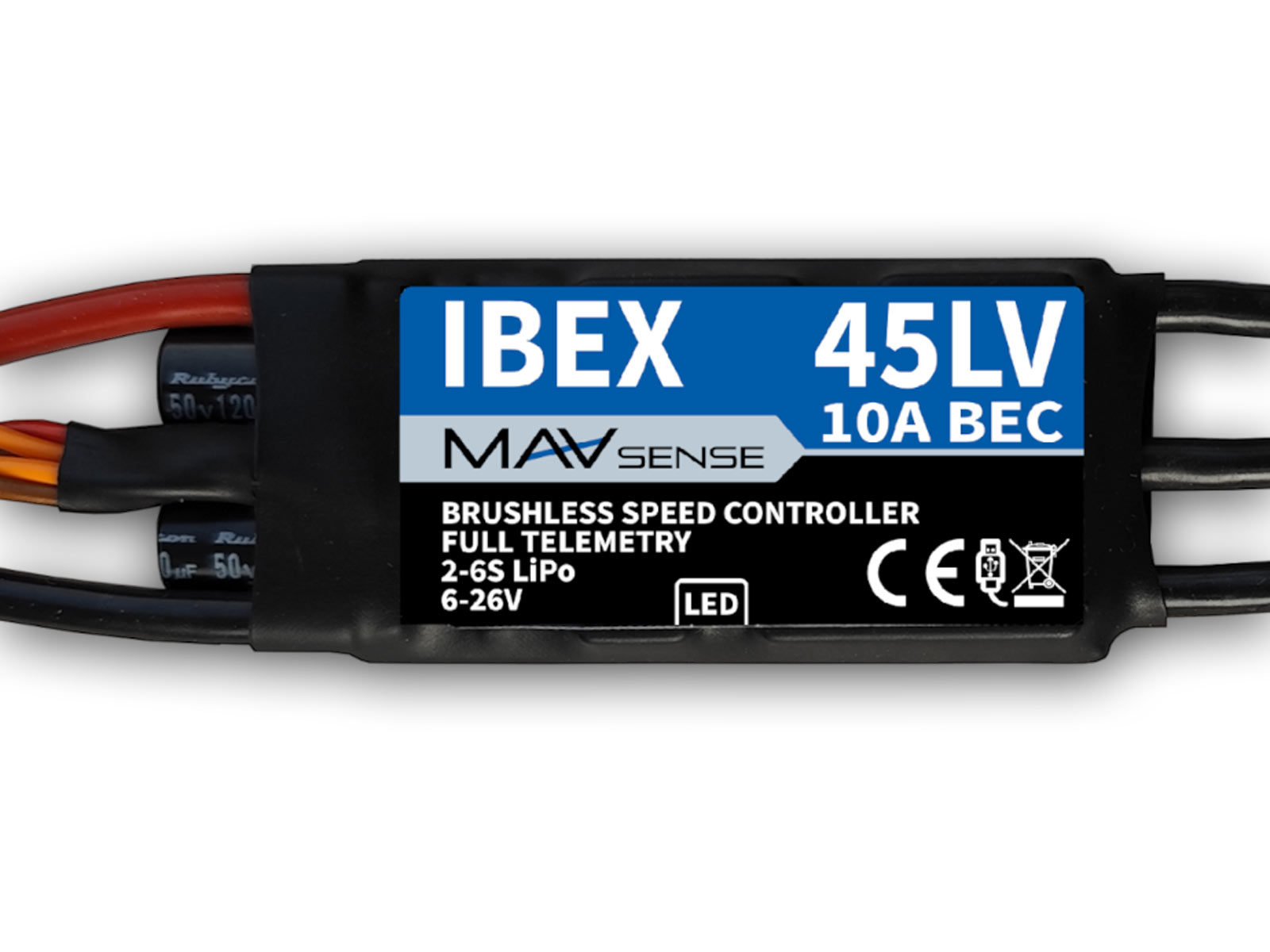

IBEX 045 LV SBEC

High-power BLDC controller offers continuous current up to 40A at a voltage of up to 26V (6S LiPo). It offers a high-quality stabilized voltage output (BEC) with a continuous current of up to 10A. It is suitable for smaller RC models - typically electric gliders. With a load capacity of up to 60A for 30s, it is perfectly suitable for F5J competition models.Features

• The IBEX product line represents advanced speed controllers for use exclusively in RC airplane models. With integrated telemetry and various possibilities of optional user configuration, the controllers offer high efficiency, low weight and precise motor control.

  Features

  • Small dimensions combined with high power motor control.
  • A powerful switching BEC that offers a continuous current of 10A (20A max). BEC circuit protection against overcurrent and overheating is included.
  • BEC voltage setting in steps of 0.1V.
  • Over- and undervoltage protection, overtemperature protection, motor-stall protection.
  • Configurable current limiter.
  • Safety shutdown when the throttle impulse is lost.
  • Configurable acceleration, timing, electromagnetic brake etc.
  • Low acoustic noise due to high frequency switching.
  • Automatic telemetry detection: Duplex EX, Hott, MSB, S.Bus2. Alternative firmware with Spektrum SRXL2 telemetry support.
  • Telemetry (RC system dependent): voltage, current, power, capacity, temperature, RPM, energy.
  • Telemetry min/max values are logged.
  • Configuration through the transmitter or external terminal (JETIBOX/SMART-BOX).
  • Firmware updates via USB interfaceusing the MAV Manager software.
  • Languages: CZ/DE/EN/FR/IT.



  Additional functions

  • Option to activate the synchronous rectification (Active Freewheeling) for more accurate motor response and less heating of the controller during aerobatics.
  • Flawless operation with high power multi-pole motors and the vast majority of all other motor types.
  • Optional connection of backup battery without additional adapters.
  • Does not offer the propeller positioning function, external on-off switch and motor temperature sensor.
