Fiala, the manufacturers of the engines, are a company that caters to the military; hence this is military grade equipment under constant development, it is and always will the most advanced engine manufacturer on the market.
At the moment we carry over 15 different models of Fiala engines.
Fiala 280cc opposed twin 4 cylinder gas 4stroke engine with electronic ignition
This is THE powerhouse motor for your half scale aerobatic projects such as the EMHW aerobatic airplane

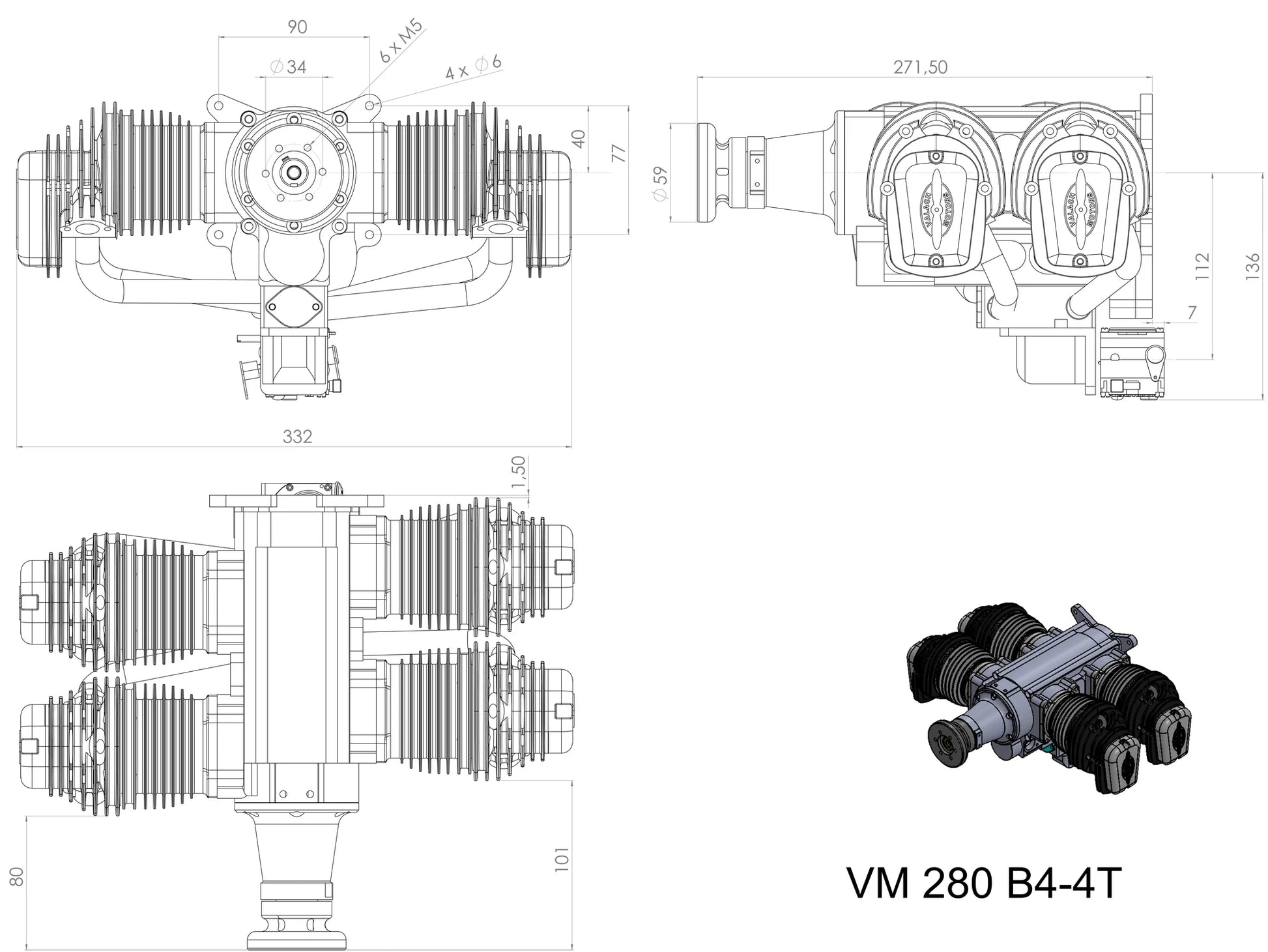

- Displacement: 280 cc
- Bore: 47 mm
- Stroke: 40 mm
- Width including valve covers: 332 mm
- Length from engine mount to prop hub: 272 mm
- Engine weight, including ignition: 7840 g
- Ignition voltage range: 4,8 - 9 V
Current included Standoffs: 27mm
Fiala is the only 4-stroke company in the world which produces both the engines and the propellers developed and designed to be used with them. They go hand in hand.
The Fiala propellers have quickly become a staple in the global UAV industry as no other propeller matches their efficiency.
Hence it is important to run the Fiala propellers with the Fiala engines should you want to run the diameters and pitches shown in the Fiala manual. These specifications are based only, and I cannot stress that enough, on their purpose designed and built Fiala propellers.
Other brands run the risk of over torquing and stressing the engine unnecessarily, limiting performance and service life.
Recommended props:
34 x 16 Fiala 2blade
36 x 14 Fiala 2blade
38 x 12 Fiala 2blade
30 x 20 Fiala 3blade
32 x 18 Fiala 3blade
Fiala Motors FM280-B4-FS 280ccm
- Sensational smooth running and high torque
- Spontaneous throttle response and smooth mid-range transition
- Extremely low vibration throughout the RPM range because of the four stroke principle
- Nickel-Silicon plated cylinder surfaces
- Honda Valves
- Walbro Carburetor
- Fiala microprocessor controlled ignition with auto advance and retard
- An ignition integrated voltage converter allows the use of two Lithium cells
- FM-Motors are designed using the latest tools and techniques
Specifications:
- Displacement: 280 cc
- Bore: 47 mm
- Stroke: 40 mm
- Width including valve covers: 332 mm
- Length from engine mount to prop hub: 272 mm
- Engine weight, without ignition: 8240 g
- Ignition voltage range: 4,8 - 9 V
- Propeller:
- Fiala Propeller 2-blade: 36x12", 36x14", 38x12"
- Fiala Propeller 3 Blade: 34x14", 36x12"
