Fiala, the manufacturers of the Valach engines, are a company that caters to the military; hence this is military grade equipment under constant development, it is and always will the most advanced engine manufacturer on the market.
At the moment we carry over 15 different models of Fiala engines.

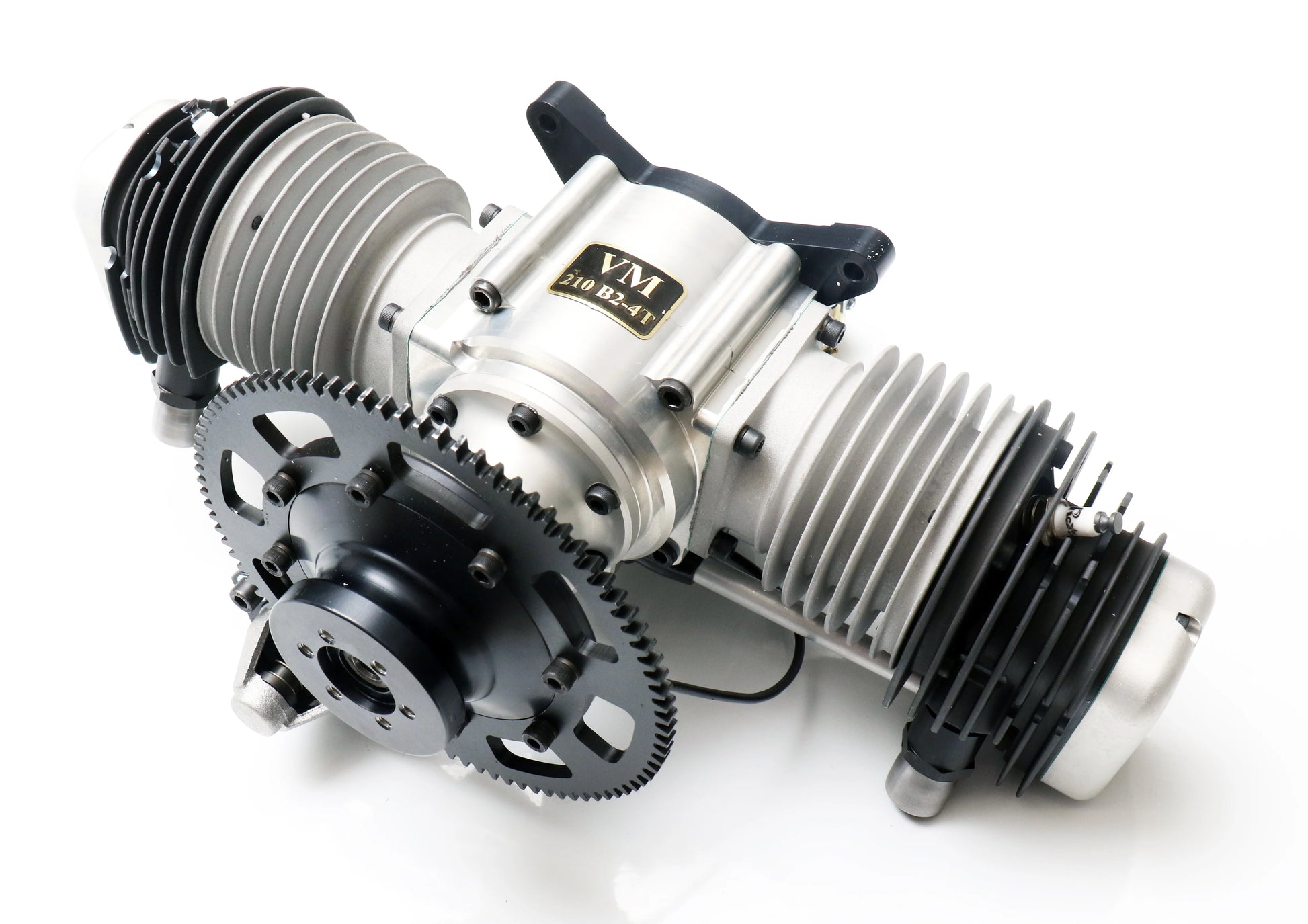

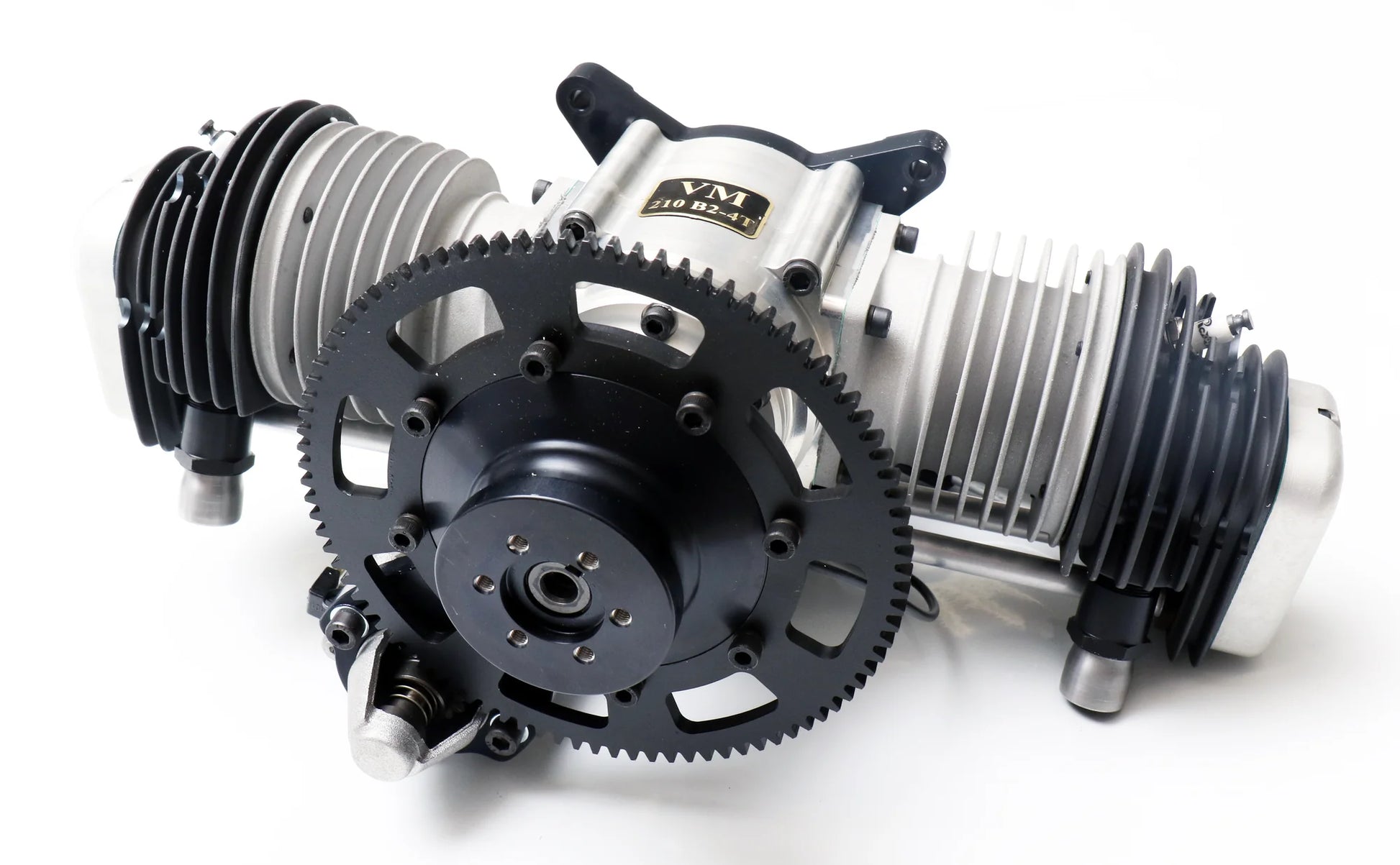

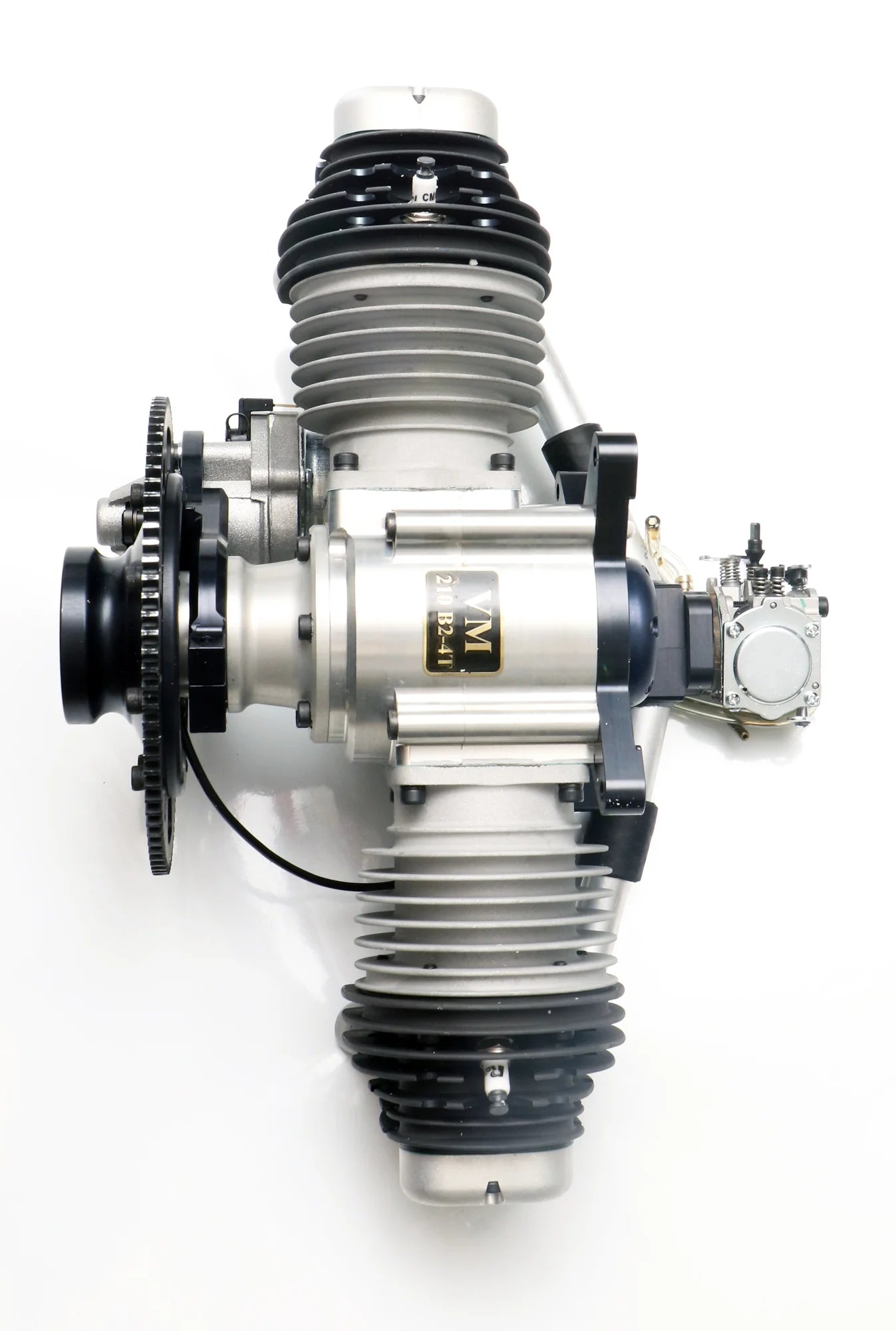

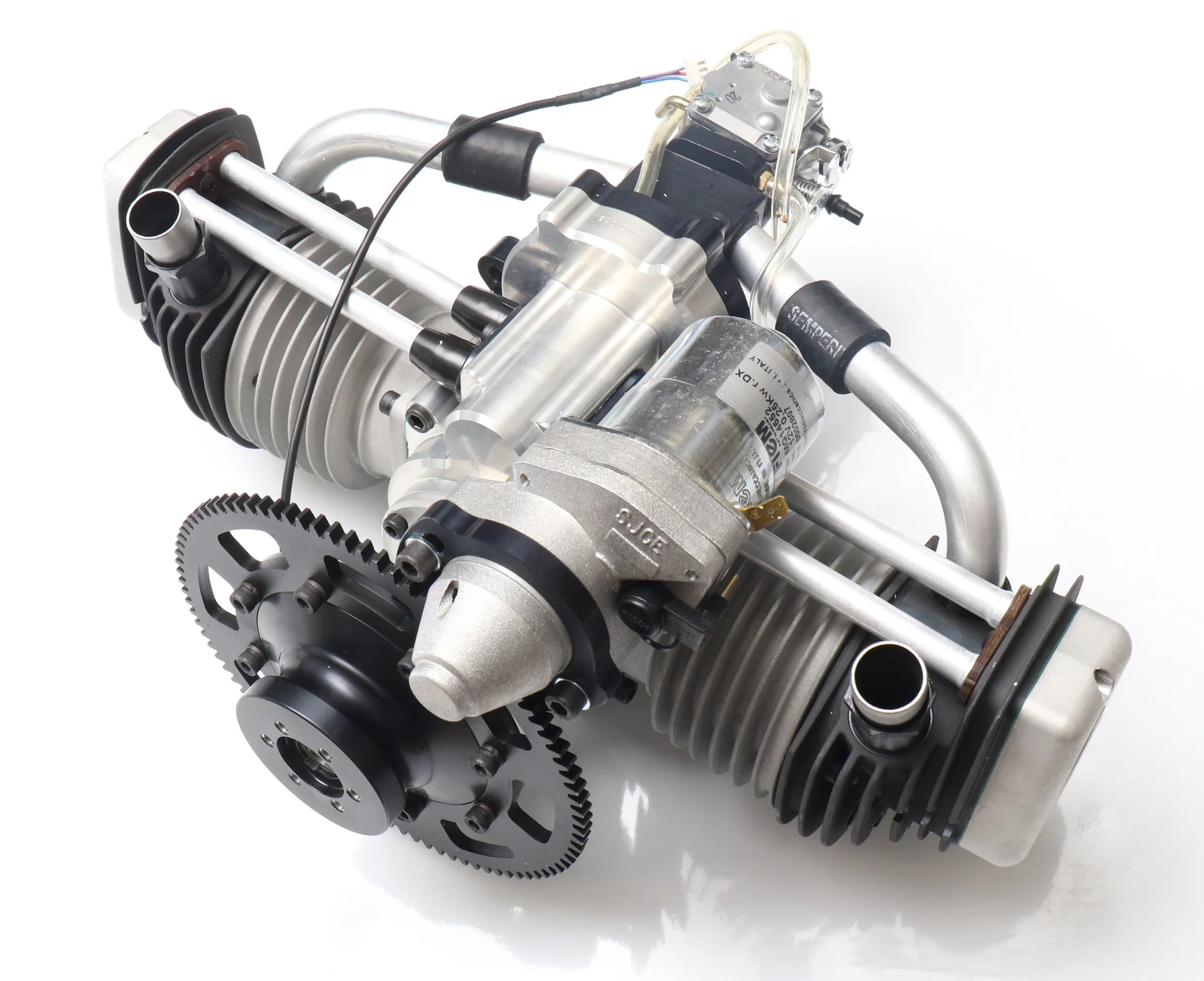

Fiala 210cc opposed twin cylinder gas 4stroke engine with electronic ignition and electronic starter
Displacement: 210 cc
Power: ca. 16 hp
Bore: 52 mm
Stroke: 50 mm
Width including valve covers: 385 mm
Length from engine mount to prop hub: 185 mm
Weight: complete with ignition, two exhaust stacks, prop washer and prop bolts 6125 g
Ignition voltage range: 4.8 - 9 V
Idle RPM: 800
Max RPM: 5300
Fiala is the only 4-stroke company in the world which produces both the engines and the propellers developed and designed to be used with them. They go hand in hand.
The Fiala propellers have quickly become a staple in the global UAV industry as no other propeller matches their efficiency.
Hence it is important to run the Fiala propellers with the Fiala engines should you want to run the diameters and pitches shown in the Fiala manual. These specifications are based only, and I cannot stress that enough, on their purpose designed and built Fiala propellers.
Other brands run the risk of over torquing and stressing the engine unnecessarily, limiting performance and service life.
Recommended props:
34 x 16 Fiala 2 blade
36 x 14 Fiala 2 blade
38 x 12 Fiala 2 blade
36 x 14 Fiala 3 blade
36 x 12 Fiala 3 blade
33 x 16 Fiala 3 blade
FM 210 – B2 - FS
Volume 210 ccm
Bore 52 mm
Stroke 50 mm
Weight 5,5 kg
2-blade propeller 38/12, 36/14, 34/16
3-blade propeller 36/14, 36/12, 34/16
RPM Range 1000- 5300
