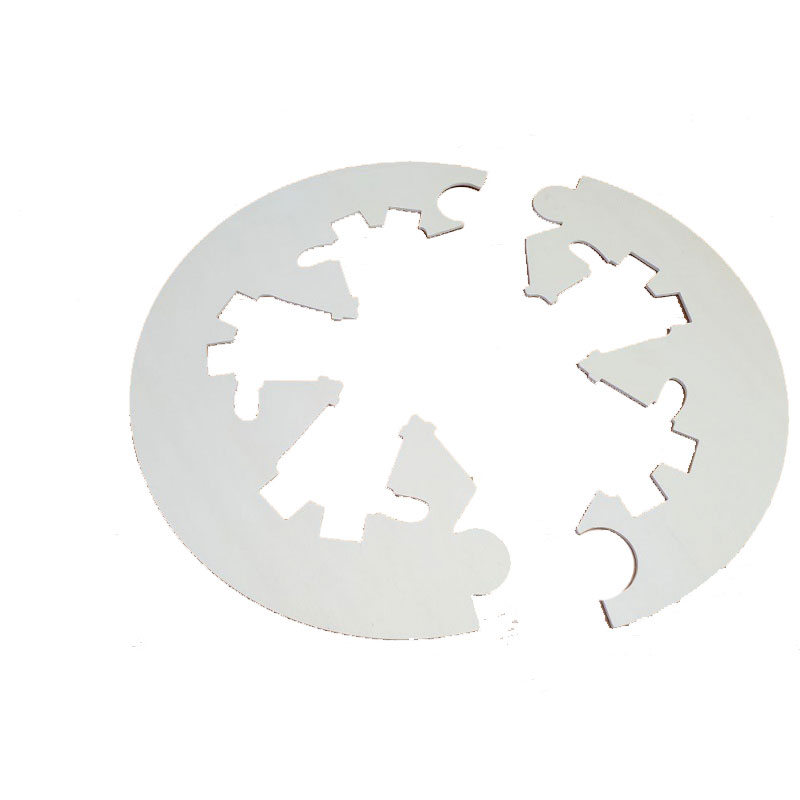

Ply Baffle plate for the Fiala/Valash FM 250 R5 Motor
The baffle is ordered separately to the motor and not supplied with it. It is divided into two pieces for transport purposes.
Note: When using this relatively tight baffle, it must be absolutely sure that the air supply for the carburetor is from inside the fuselage and completely separated, ie airtight to the housing.
Otherwise, increase the gap to approx. 9 mm. Otherwise, too much warm air will be sucked into the carburetor and engine performance and efficiency will be reduced. If you have any questions or concerns, please contact us.
External diameter is 42cm.
Ply Baffle plate
In 2 pieces
Made from 4mm light ply
External diameter is 42cm
