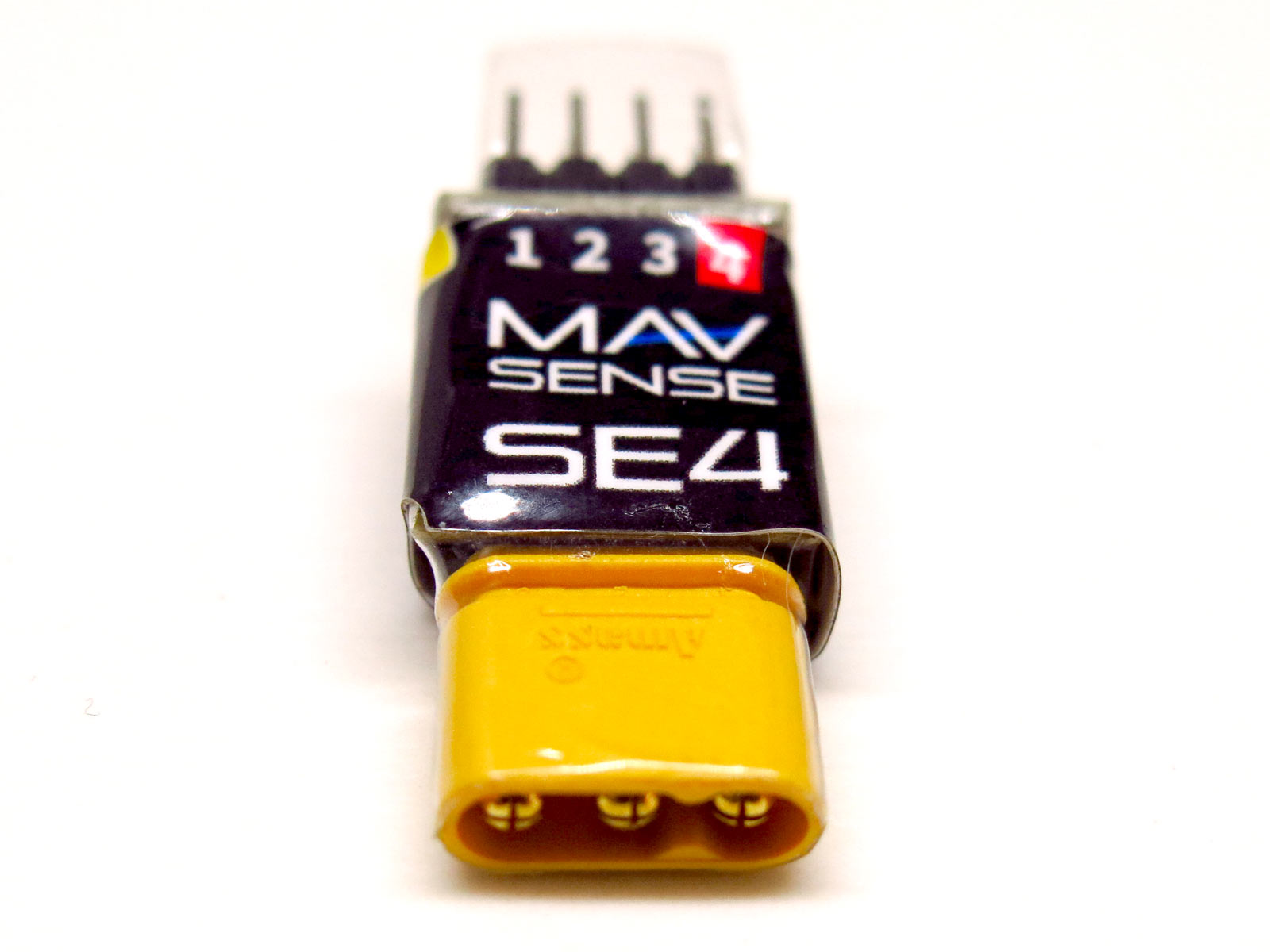

Servo Expander SE4

The Servo Expander SE4 is a device that converts serial bus signal to standard PWM servo outputs. It offers up to four configurable servo outputs with optional period and fail-safe setting. The SE4 is a perfect choice for models with complex wing or tail mechanics where multiple servos may be connected to a primary receiver using just a single cable.

Supported protocols:

• Futaba: S.Bus/S.Bus2
• Graupner: SUMD, Hott telemetry for setting
• JETI: EX Bus
• Multiplex: SRXL 12ch, SRXL 16ch
• PowerBox: P2Bus

Features

• Small dimensions and high current throughput via the integrated MR30 power connector.
• 4-channel servo/EX Bus sensor expander.
• Automatic detection of serial data/telemetry after startup.
• Configuration through the transmitter, external terminal (JETIBOX/SMART-BOX) or MAV Manager PC software.
• Firmware updates via USB interface.
