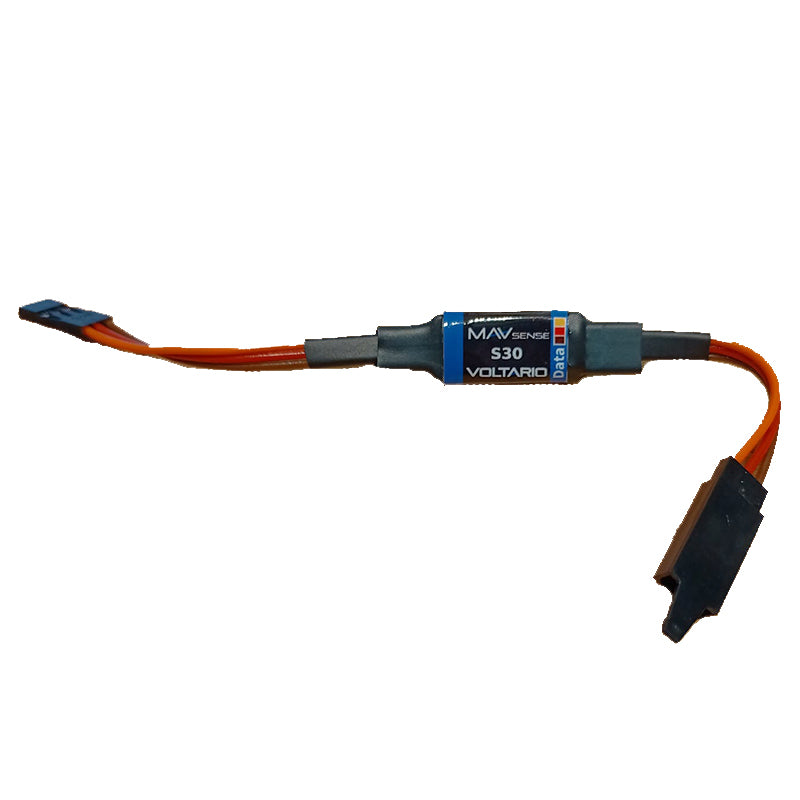

MAV Sense Voltario S30

MAV Sense Voltario S30

Voltario S30 is used to monitor the power consumption of a single servo. It provides an additional way to set an overcurrent protection shutdown.

• Duplex telemetry (current, voltage, capacity)
• HOTT telemetry (current, voltage, capacity)
• Futaba Telemetry (1678 Port3 - Current, Voltage, Capacitance)
• JetiBox compatible
• Optional overcurrent shutdown with regeneration

Voltario S30 installation

Plug the Voltario S30 between receiver output channel and servo. The Voltario S30 works completely autonomously as a programmable fuse (this function must be configured first).

To display the telemetry data, you can connect the Voltario S30 to the receiver (telemetry input) using a JR cable.If you want to configure the device with a JETIBOX, you have to supply the JETIBOX with external voltage, since the red cable is not connected internally in the Voltario S30
