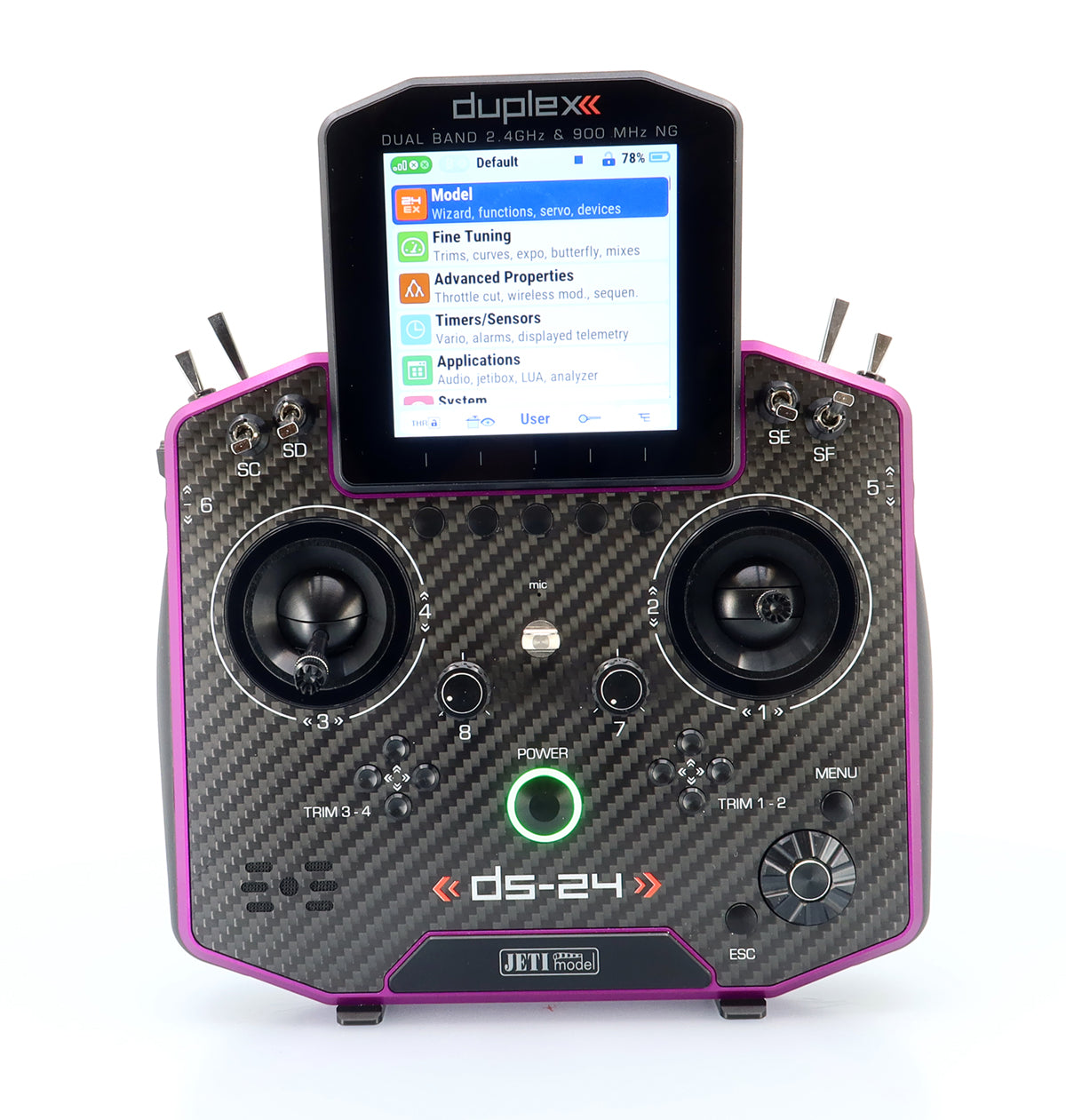

JETI DUPLEX DS-24II-Carbon Line Purple anodised

Jeti Duplex 2.4 EX DS24 II Carbon Line Purple Multi Mode Transmitter with REX12 Receiver

You are welcome to check stock availability before ordering by calling 07740 181861

The new generation of the DS-24 II transmitter series features a timeless design with a redesigned and lighter frame for enhanced comfort. It now supports Bluetooth connectivity with Smartphone and includes new stick controls with front side adjustments.
Powered by a high-performance processor with a large Memory delivers high-quality texture settings and higher resolution on a completely new and larger display. The improved graphics facilitate better navigation within the menu.

Package contents

DS-24 II Carbon Line Purple anodized, Aluminium case, Strap, REX12 Assist receiver with accessories, Charger, USB-C cable, DUPLEX pad, Assembly keys, Cleaning Cloth, Manuals in English.

Features:

• New stick controls with front side adjustments
• New, simpler switch replacement system
• Simple replacement of the front Potentiometers with switches
• New back panel ergonomics
• 4 inch LCD with high brightness for sunlight readability
• Bluetooth connectivity for headphones
• Online telemetry via Bluetooth for smartphones
• Wi-Fi module - Online updates (in future updates)
• Application for displaying telemetry on smartphones Android/iOS
• 900 MHz NG backup system
• New graphical design of the user interface (menu)
• Weight reduction
• One connector for both PPM and phone outputs
• USB-C connector for charging and PC/MAC connection
• Fully compatible with the Duplex system and previous JETI transmitters
• Vibration alarm on the control sticks l/r 3-step
• New colour pallet of the frame

900 MHz NG Backup-System

This is an independent, second transmission system in a second frequency range. If this system is used, the model can still be controlled even if there is a disruption in the 2.4Ghz band (e.g. due to radio links, during copter flights for television broadcasts, etc.). The 900Mhz NG backup system only becomes active if this occurs. It essentially serves to expand security in high-quality models. Of course, this backup system can be activated or deactivated separately per model. It is always used together with the 2.4Ghz transmission system, not individually.

Transmitter hardware

• Stick controls with front side adjustments
• Identify the stick positions by Hall sensors (without potentiometer)
• Stick resolution 4096 steps
• 4 inch 480x480px Colour Display
• Rotating stick mechanic
• Aluminium stick , length- adjustable , with ball bearings
• Internal memory
• Built-in antennas
• Integrated Li - Ion battery for long operation time
• Charger and USB-C cable
• Aluminium case
• Speech Output
• Bluetooth and WiFi modul
• USB-C Port
• Headphone and PPM jack
• digital trims
• Lacquered frame

Transmitter software

• 2.4 GHz DUPLEX EX
• 24 channels
• Customizable menu system
• Almost unlimited adjustment possibilities
• Almost unlimited memory model number
• Firmware upgrade via USB and WiFi (in future updates)
• Ultra- fast control responses
• Power management system for extended operating time
• Bluetooth Connection to Smartphone App and headphone
• 4 selectable types of models ( Wing/Heli/Multicopter/Truck-Boat )
• 8 languages (EN / DE / CZ / FR / IT / PT / SE)

Telemetry functions

• Speech of telemetry alarms and telemetry values
• Display of telemetry data in real time on the transmitter Display or Smartphone app
• Recording of telemetry data
• PC/Mac transfer , storage of telemetry , model and channel settings

Technical data

• Dimensions [mm] 230 x 270 x 40
• Weight [g] ~1300
