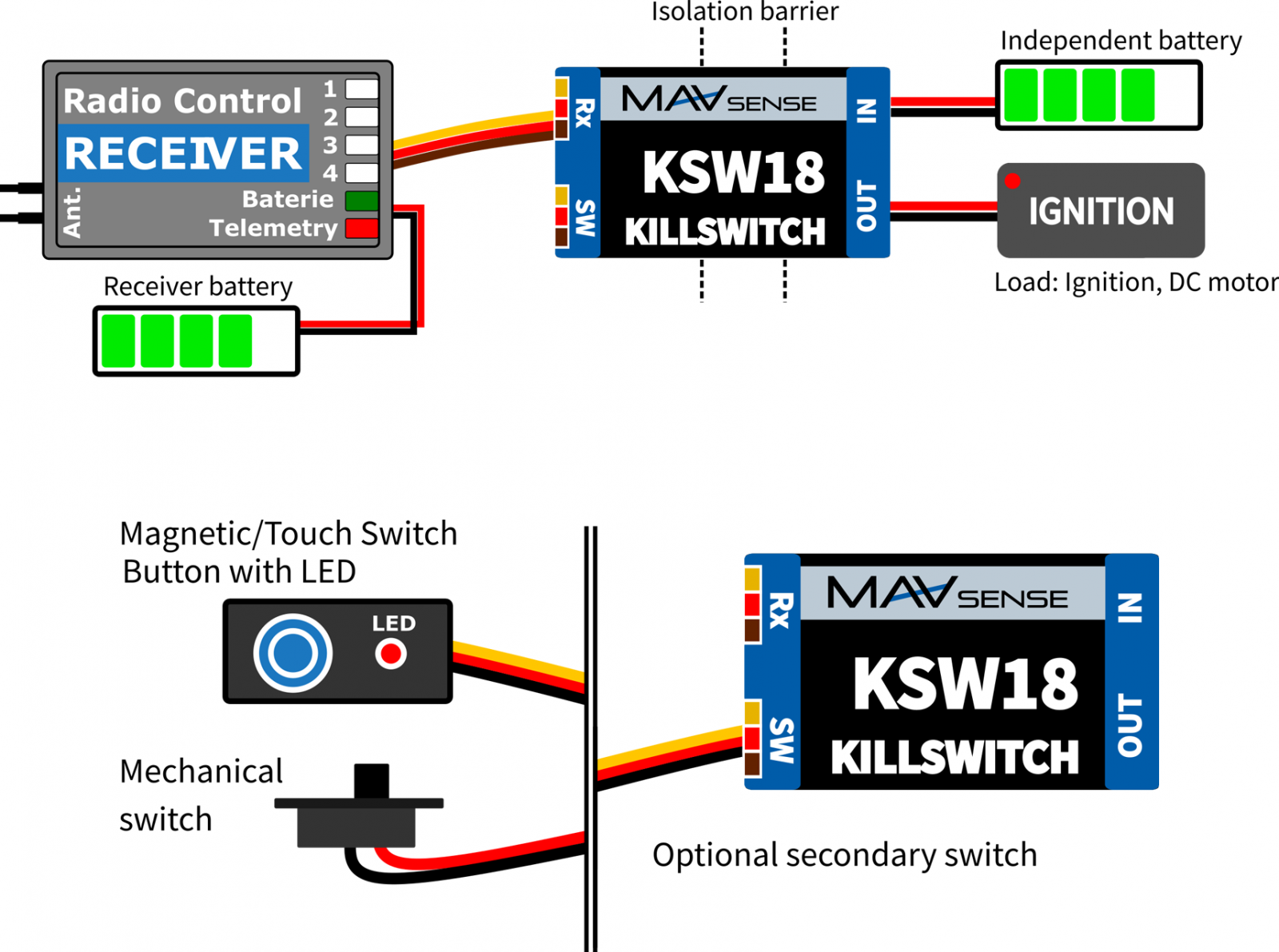

The KillSwitch KSW18 is a high-performance digital switch featuring an optically isolated switching circuit. Thanks to its excellent noise immunity and signal separation, it is ideal for use as an independent ignition switch. It can be controlled via an RC channel, mechanical switch, or both. The device offers a range of configurable options for flexibility in various setups.
Features
- Optically isolated switching circuit with independent power supply.
- Supports a variety of loads: motors, relays, lights, heaters.
- Compatible with additional magnetic, mechanical, or electronic switches or buttons (optional touch switch support).
- Dual switch inputs for enhanced safety.
- Supports Duplex EX and FrSky telemetry for configuration.
- Configurable via transmitter or MAV Manager PC software.
- Firmware update capability.
| Weight [g] | 19 |
| Dimensions [mm] | 50 x 19 x 10 |
| Telemetry | Duplex EX, FrSky |
| Operational temperature [°C] | -20 – 85°C |
| Supply Voltage [V] | 4 – 16 |
|
Weight [g] |
4 |
|
Dimensions [mm] |
34 x 14 x 9 |
|
Continuous current [A] |
15 |
|
Max. current (2s) [A] |
60 |
|
Telemetry |
JETI Duplex, Multiplex, Graupner Hott, Futaba S.Bus, PowerBox P2Bus |
|
Operational temperature [°C] |
-20 – 85 |
|
Supply Voltage [V] |
4 – 14 |
|
Number of channels |
4 |
|
Receiver inputs |
1 |
|
Battery inputs |
1 |
|
Voltage regulation |
No |
|
Flight stabilization |
No |
