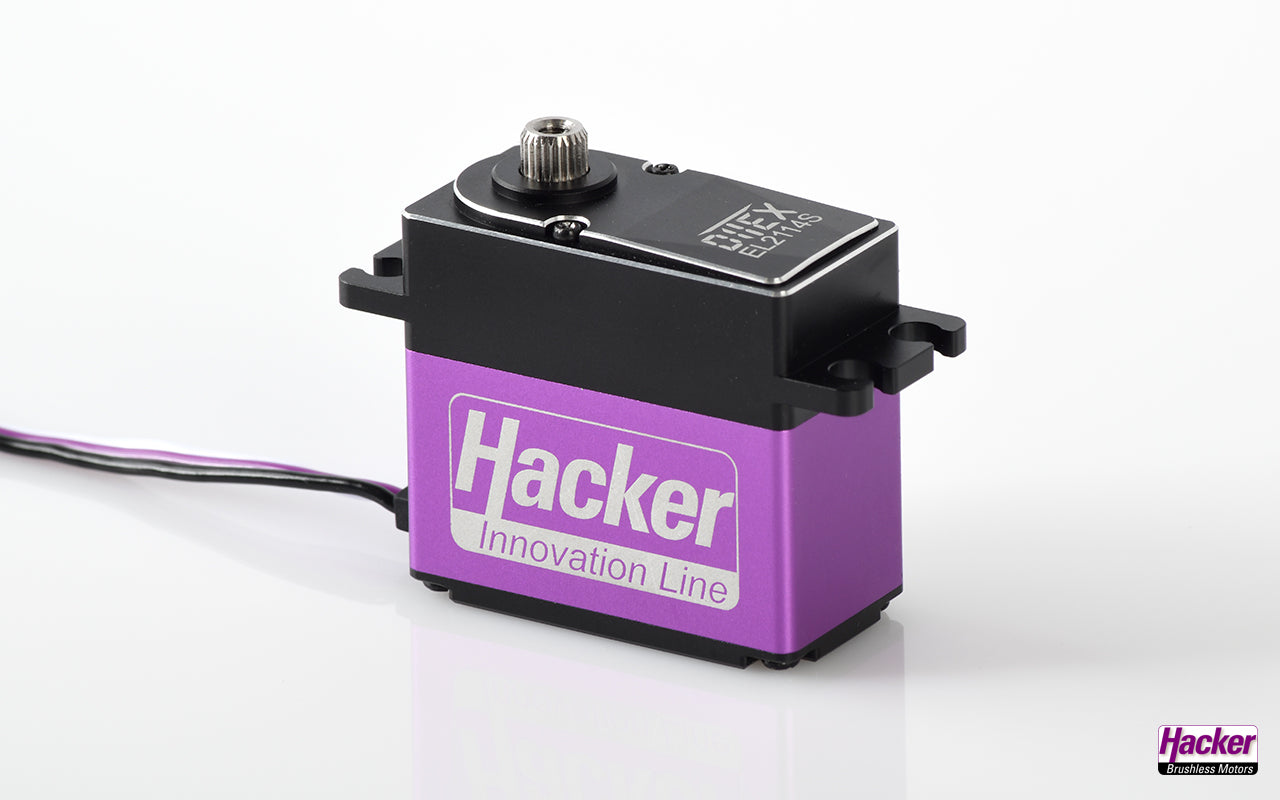

DITEX EL2114S
Product description and features
Standard servo with all-aluminium housing and metal gearbox.
22.0 kilograms of actuating force at 7.4 volts and an actuating speed of 0.13 seconds for 60 degrees.
Suggested application area
Model motor planes, model gliders or helicopters.
Delivery contents

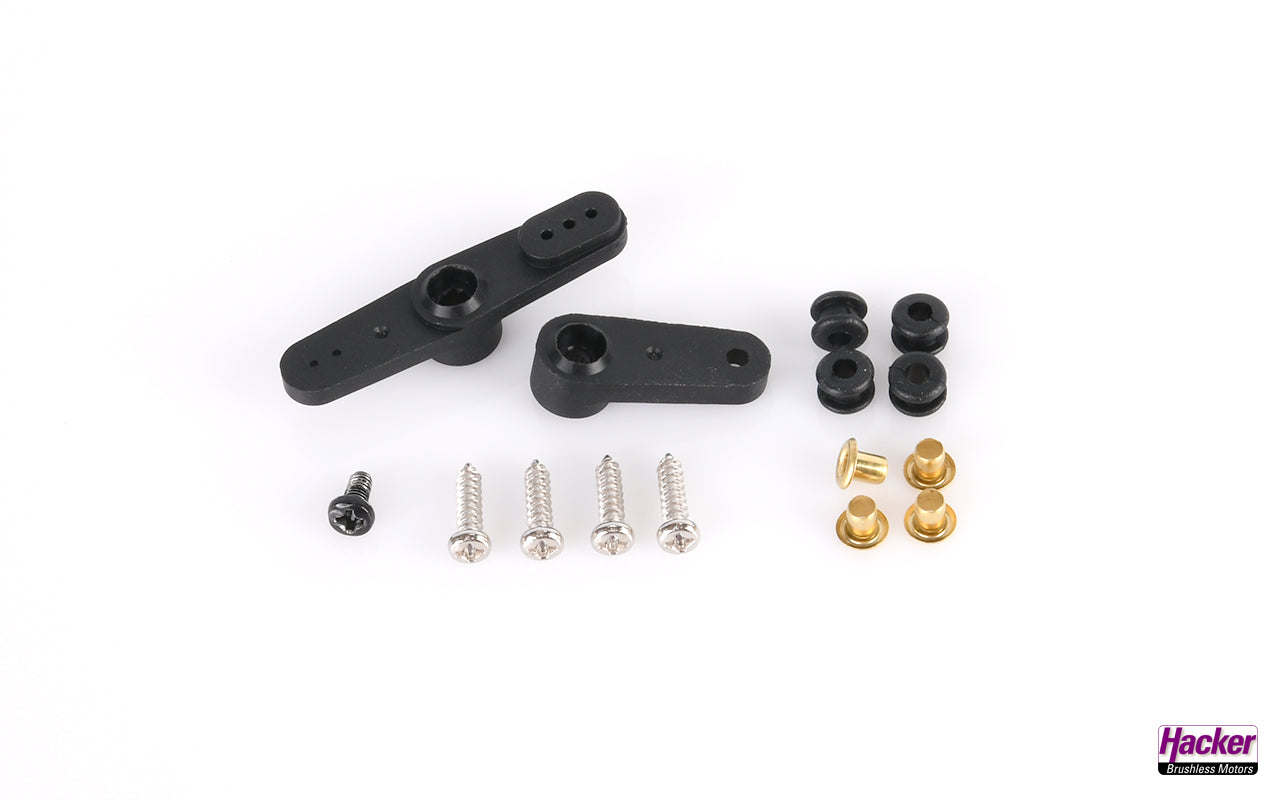

1 DITEX EL2114S, servo arms and fixing material.
General
Recommended application area Engine flight models, glider models or helicopters.
Classification Standard

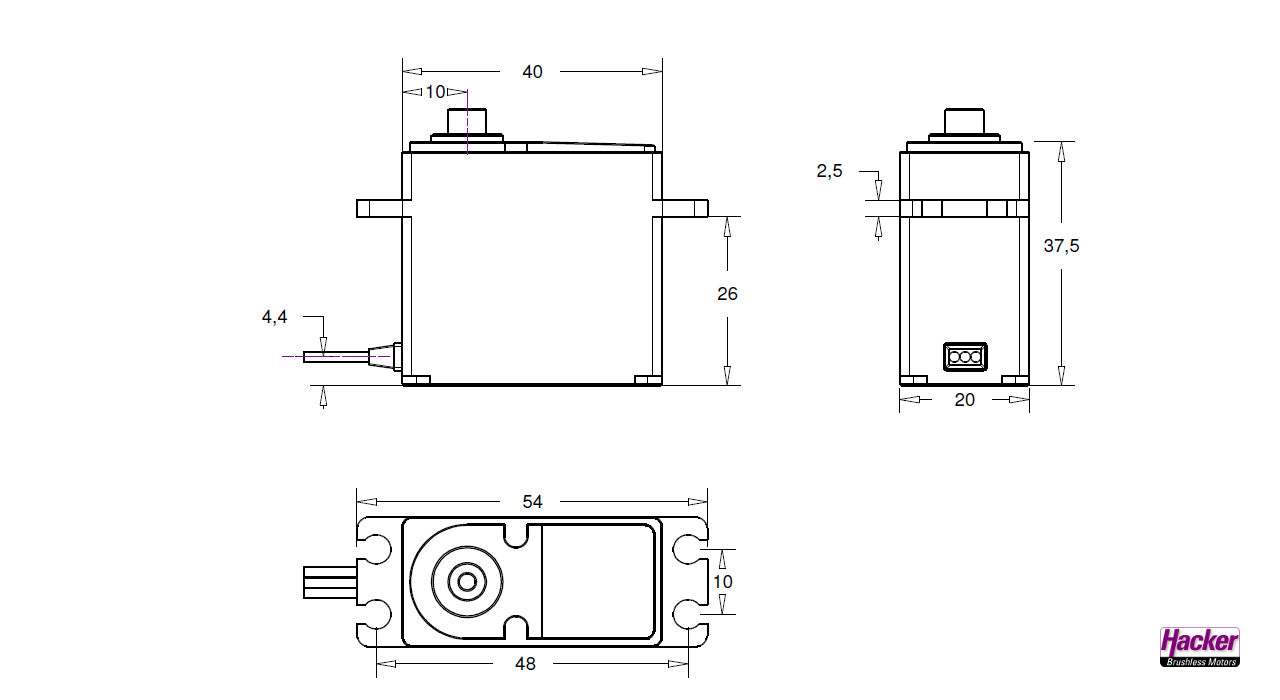

Dimensions and weight
Length 40mm (1.57in)
Width 20mm (0.79in)
Height 37.5mm (1.48in)
Weight incl. connection cable 77g (2.79oz)
Specifications
High voltage capable yes
Voltage 1 (V1) 6V
Voltage 2 (V2) 7.4V
Max. input voltage 8.4V
Regulating time V1/60° 0.14s
Regulating time V2/60° 0.13s
Pulling load V1 19kg/cm
Pulling load V2 22kg/cm
Frequency 55Hz to 333Hz
Outer diameter output in mm 5,9
Housing type Aluminium
Motor type Coreless
Transmission type Steel
Number of output cogs 25 (Futaba/Savöx compatible)
Angle measurement Potentiometer
Programmable no
Soft start no
Telemetry no
