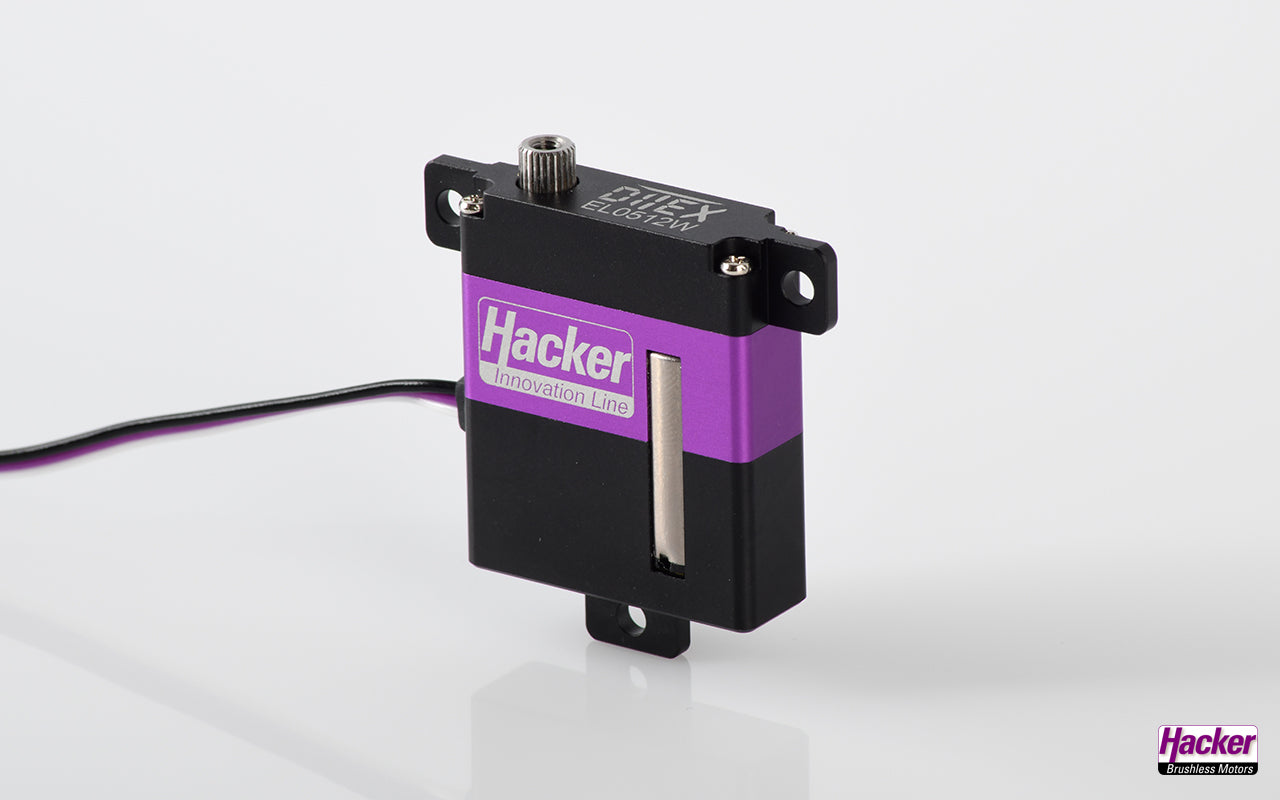

DITEX EL0512W
Product description and features
Low-profile servo with all-aluminium housing and metal gearbox.
6.0 kilograms of actuating force at 7.4 volts and an actuating speed of 0.13 seconds for 60 degrees.
Suggested application area
Low-profile servo for applications with low installation depth.
Delivery contents

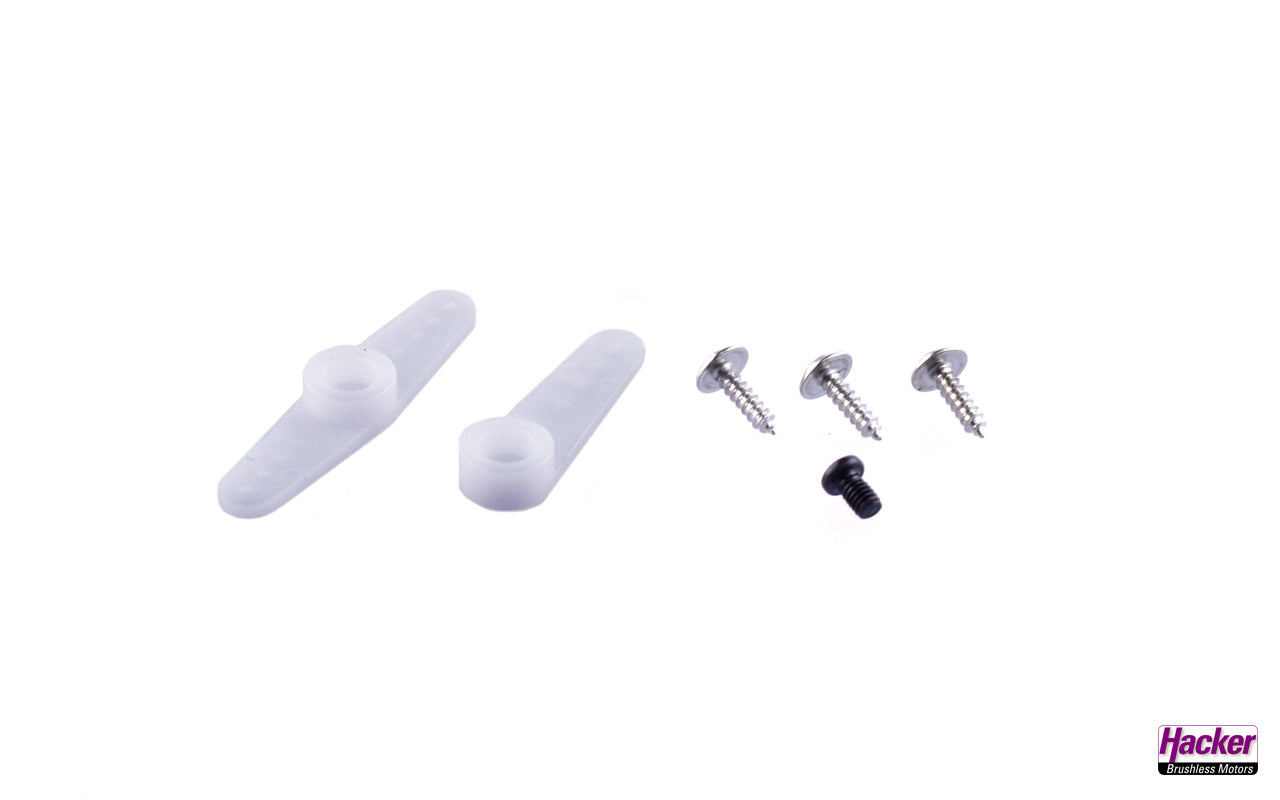

1 DITEX EL0512W, servo arms and fixing material.
General
Recommended application area Flat servo suitable for flat wings.
Classification Wing servo

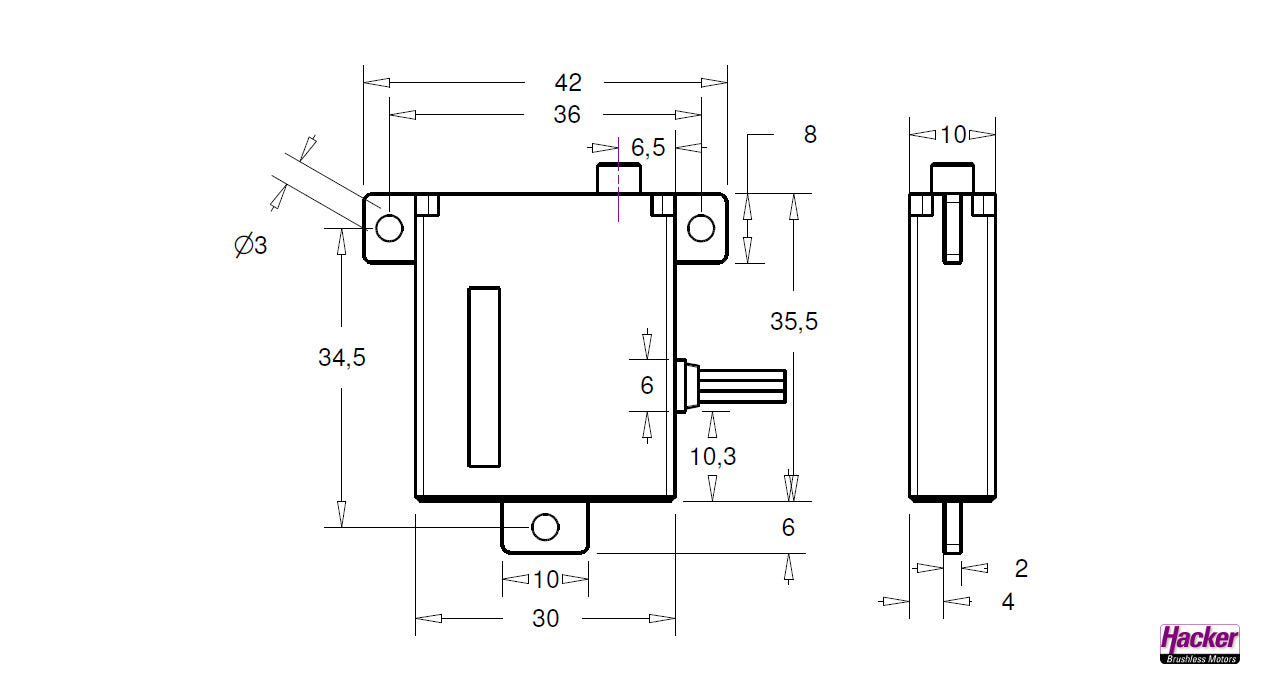

Dimensions and weight
Length 30mm (1.18in)
Width 10mm (0.39in)
Height 35.5mm (1.4in)
Weight incl. connection cable 29g (1.02oz)
Specifications
High voltage capable yes
Voltage 1 (V1) 6V
Voltage 2 (V2) 7.4V
Max. input voltage 8.4V
Regulating time V1/60° 0.14s
Regulating time V2/60° 0.13s
Pulling load V1 4.5kg/cm
Pulling load V2 6kg/cm
Frequency 55Hz to 333Hz
Outer diameter output in mm 4,9
Housing type Aluminium
Motor type Coreless
Transmission type Steel
Number of output cogs 25 (Futaba/Savöx compatible)
Angle measurement Potentiometer
Programmable no
Soft start no
Telemetry no
