DITEX EL0510M
Product description and features

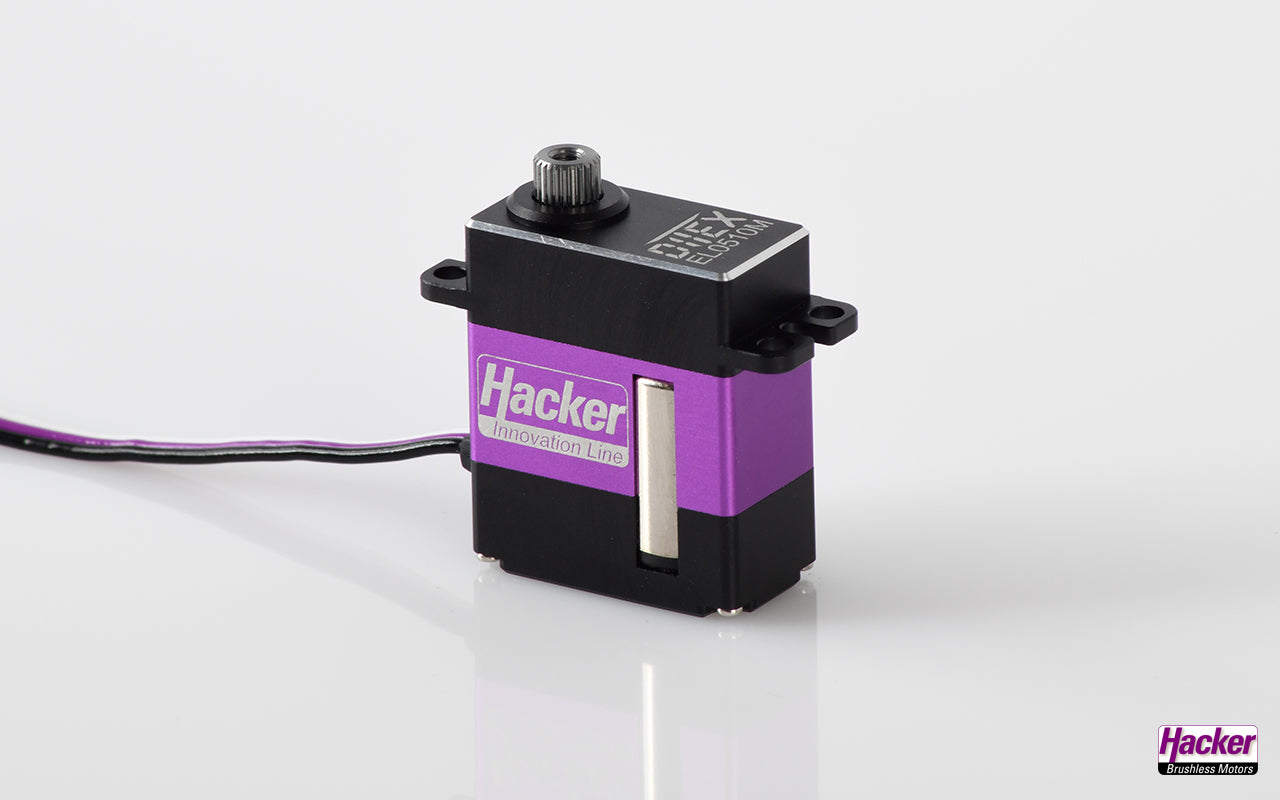

Micro-servo with all-aluminium housing and metal gearbox.
6.8 kilograms of positioning force at 7.4 volts and a positioning speed of 0.09 seconds for 60 degrees.
Suggested application area
Micro servo for small models.
Delivery contents

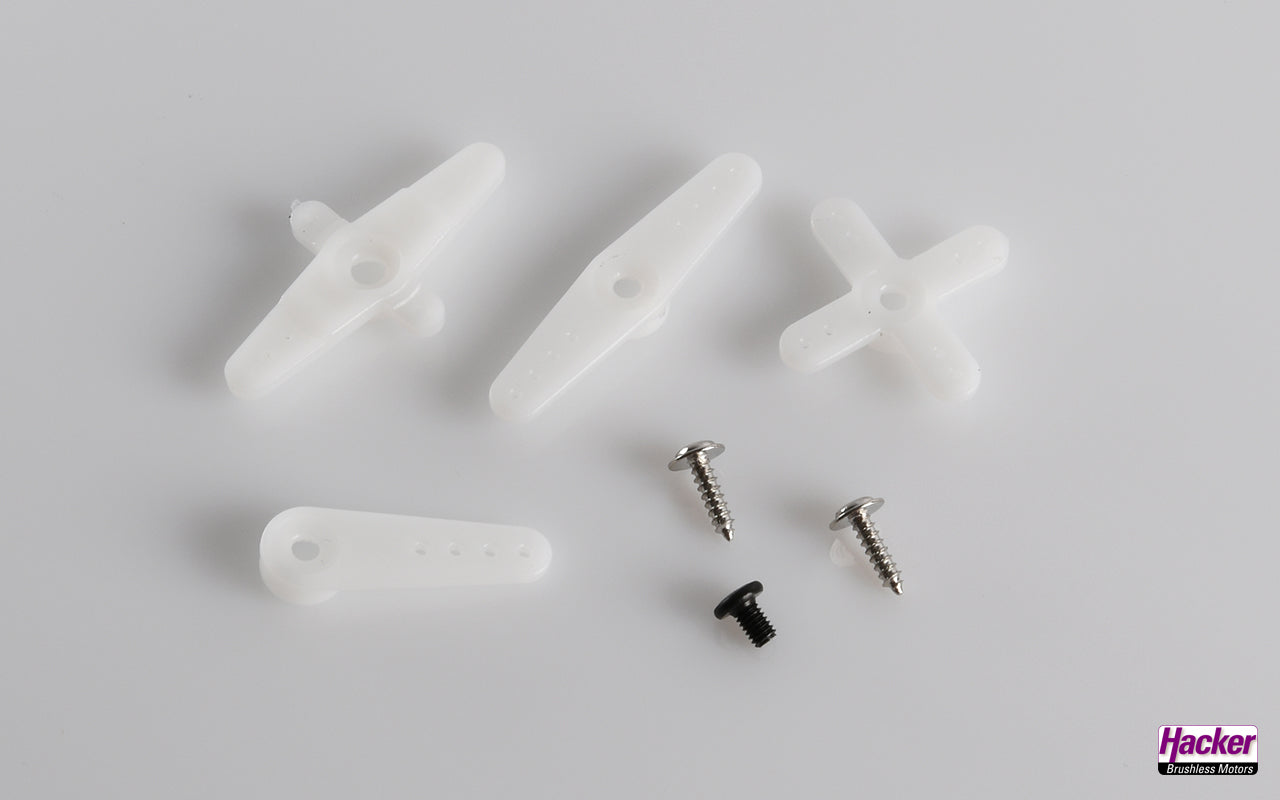

1 DITEX EL0510M, servo arms and fixing material.
General
Recommended application area High voltage servo made of full aluminium.
Classification Micro

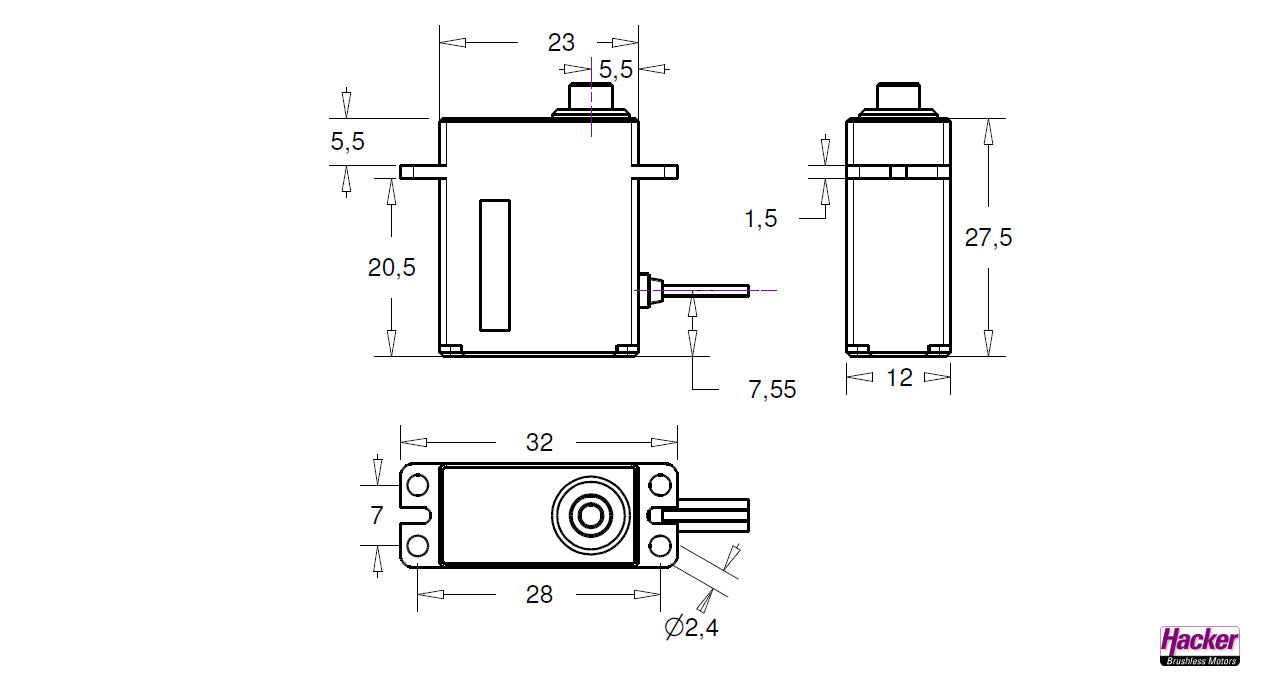

Dimensions and weight
Length 23mm (0.91in)
Width 12mm (0.47in)
Height 27.5mm (1.08in)
Weight incl. connection cable 20g (0.71oz)
Specifications
High voltage capable yes
Voltage 1 (V1) 6V
Voltage 2 (V2) 7.4V
Max. input voltage 8.4V
Regulating time V1/60° 0.11s
Regulating time V2/60° 0.09s
Pulling load V1 5.5kg/cm
Pulling load V2 6.8kg/cm
Frequency 55Hz to 333Hz
Outer diameter output in mm 4,9
Housing type Aluminium
Motor type Coreless
Transmission type Steel
Number of output cogs 25(Futaba/Savöx compatible)
Angle measurement Potentiometer
Programmable no
Soft start no
Telemetry no
