IBEX 080 HV

£161.39 £134.49

IBEX 80 HV

Availability: In stock
Only 2 left
SKU
IBEX-080HV
We have 2 items in stock!

High power speed controller for BLDC motors offers continuous current up to 80A at a voltage of up to 51V (12S LiPo). Using a special firmware, we offer the optional starter or starter-generator mode.

The IBEX product line represents advanced speed controllers for use exclusively in RC airplane models. With integrated telemetry and various possibilities of optional user configuration, the controllers offer high efficiency, low weight and precise motor control.

Features

  • Small dimensions combined with high power motor control.
  • Over- and undervoltage protection, overtemperature protection, motor-stall protection.
  • Configurable current limiter.
  • Optically isolated throttle input.
  • Safety shutdown when the throttle impulse is lost.
  • Configurable acceleration, timing, electromagnetic brake etc.
  • Low acoustic noise due to high frequency switching.
  • Automatic telemetry detection: Duplex EX, Hott, MSB, S.Bus2. Alternative firmware with Spektrum SRXL2 telemetry support.
  • Telemetry (RC system dependent): voltage, current, power, capacity, temperature, RPM, energy.
  • Telemetry min/max values are logged.
  • Configuration through the transmitter or external terminal (JETIBOX/SMART-BOX).
  • Firmware updates via USB interface using the MAV Manager
  • Languages: CZ/DE/EN/FR/IT.

Additional functions

  • Option to activate the synchronous rectification (Active Freewheeling) for more accurate motor response and less heating of the controller during aerobatics.
  • Flawless operation with high power multi-pole motors and the vast majority of all other motor types.
  • Propeller positioning using a Hall sensor.
  • Optional external motor identification chip combined with a temperature sensor.











Write Your Own Review
You're reviewing:IBEX 080 HV

Weight [g]

60

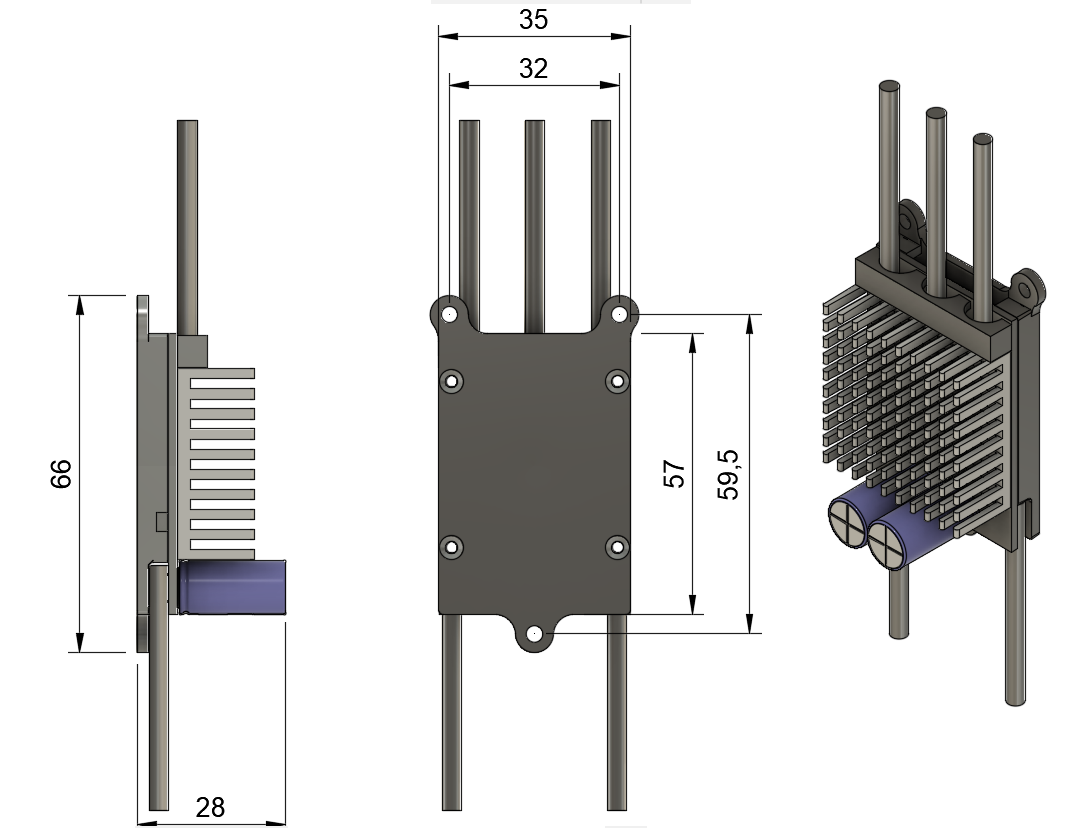

Dimensions [mm]

57 x 35 x 28

Continuous current [A]

80

Max. current (2s) [A]

120

Telemetry

Duplex EX, Hott, MSB, S.Bus2, SRXL2

Operational temperature [°C]

-10÷110

Supply Voltage [V]

10 – 51V

Batteries LiXX

3 – 12

Cable crossection (input/output) [mm²]

4 / 2.5
